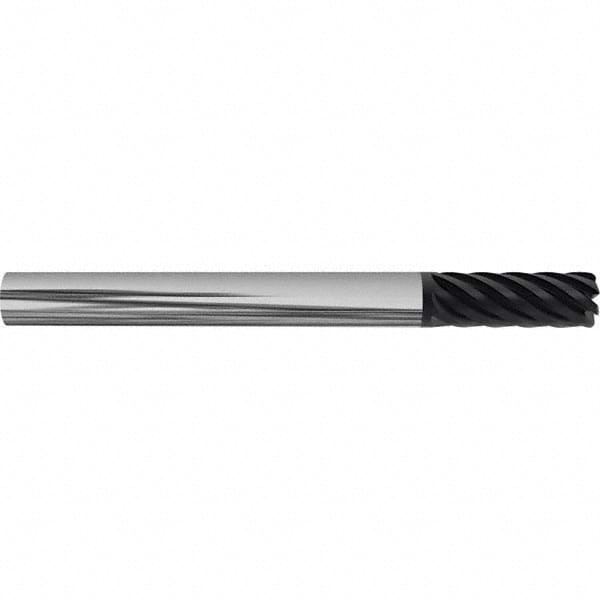

Corner Radius End Mill: 1" Dia, 4-1/8" LOC, 38 deg Helix, Corner Radius End, Series HS
Item #: 12749461
Brand: Accupro
Model #: 95172584
Product Specifications
| Mill Diameter (Inch) | 1 |
| Mill Diameter (Decimal Inch) | 1.0000 |
| Number Of Flutes | 7 |
| Length of Cut (mm) | 104.75 |
| Length of Cut (Inch) | 4-1/8 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | AlCrTiN |
| Overall Length (Inch) | 7 |
| Centercutting | No |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0900 |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Overall Length (mm) | 177.8 |
| Overall Length (Decimal Inch) | 7.0000 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 4.1250 |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (mm) | 25.40 |
| Mill Diameter Tolerance | +0.000000/-0.001000 in |
| Shank Diameter Tolerance | +0.000/-0.002 in |
| UNSPSC Code | 27112803 |
| Material Grade | Micrograin |
| Series | HS |
