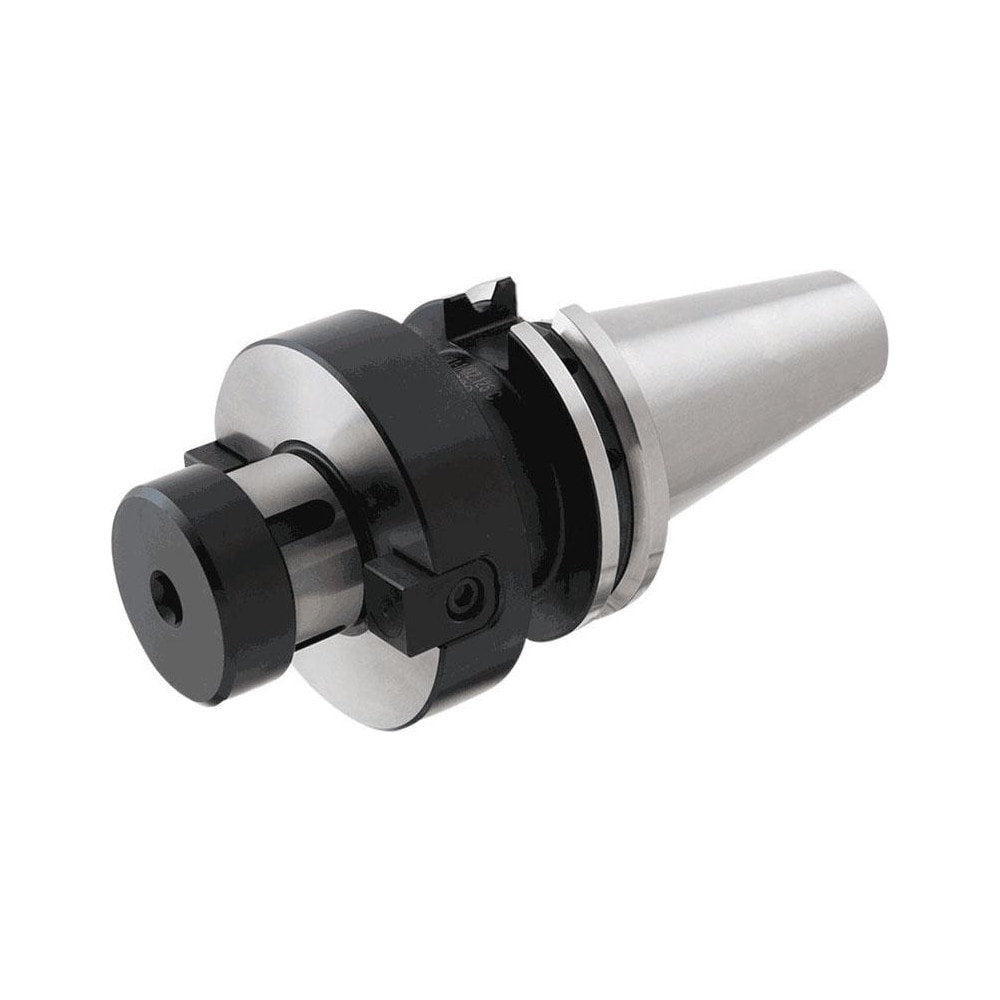

Shell Mill Holder: CAT40-FC, Dual Contact Taper Shank, 2 to 2.5" Cut Dia, 0.75" Pilot
Item #: 33989815
Brand: Tungaloy
Model #: 4510505
Product Specifications
| Shank Type | Dual Contact Taper |
| Overall Length (Decimal Inch) | 1.3800 |
| Minimum Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Cutting Diameter (Decimal Inch) | 2.5000 |
| Pilot Diameter (Decimal Inch) | 0.7500 |
| Pilot Diameter (Inch) | 3/4 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.7520 |
| Flange To Nose End | 1.2950 in |
| Taper Size | CAT40 FC |
| Coolant Type | Through-Spindle |
| UNSPSC Code | 27112800 |
