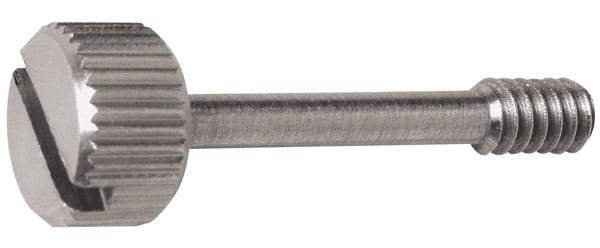

Electro Hardware - Slotted Drive #4-40 UNC 21/32" Length Under Head Captive Screw - 18-8 Stainless Steel, 5/16" Head Diam, 3/16" Head Height, Uncoated
Item #: 77124428
Brand: Electro Hardware
Model #: 4101M07F16
Exact Tooling IR#: 04
Features and Benefits
Slotted drive types are used with flat-blade drivers. They have one linear slot that runs the length of the head. Drivers must be centered in the slot during tightening or they will slip out and damage the fastener.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Drive Type | Slotted |
| Thread Size | #4-40 |
| Length (Inch) | 21/32 |
| Material | Stainless Steel |
| Material Grade | 18-8 |
| Head Diameter (Inch) | 5/16 |
| Head Diameter (Decimal Inch) | 0.3125 |
| Head Height (Inch) | 3/16 |
| Head Height (Decimal Inch) | 0.1875 |
| Thread Standard | UNC |
| Finish/Coating | Uncoated |
| Length Measurement Type | Length Under Head |
| Fastener Standard | QQ-S-763 |
