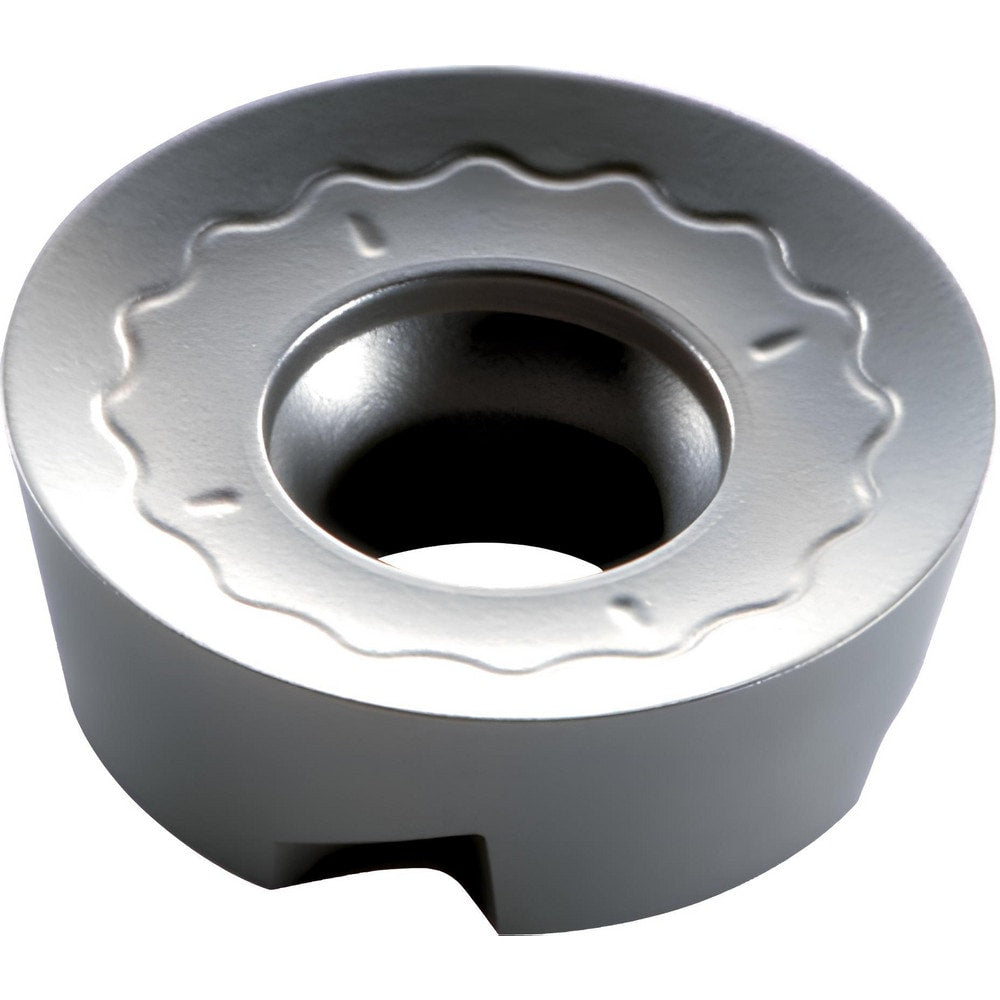

Milling Insert: RPHW1204MOSN XC3030, Solid Carbide
Item #: 33626474
Brand: OSG
Model #: 7825018
Product Specifications
| Insert Style | RPHW |
| Insert Size | 12 |
| Insert Material | Solid Carbide |
| Insert Shape | Round |
| Manufacturer Grade | XC3030 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1875 |
| Coating/Finish | TiCN; Al2O3 |
| Relief Angle | 11.00 |
| Insert Size Code | 1204 |
| Thickness (Inch) | 3/16 |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Inscribed Circle (mm) | 12.00 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Series | RPHW |
| Coating Process | CVD |
| Rake | Positive |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Ansi Code | RPHW1204MOSN |
| Iso Code | RPHW1204MOSN |
| Standards | ISO; ANSI |
| Convex Radius (Decimal Inch) | 0.2362 |
| Cutting Edge Style | Honed; Chamfered |
| Manufacturers Catalog Number | 7825018 |
| Chip Breaker | SN |
| UNSPSC Code | 23291601 |
| Material Application | Cast Iron; Steel |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 360 |
| Width (Decimal Inch - 4 Decimals) | 0.4724 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4724 |
