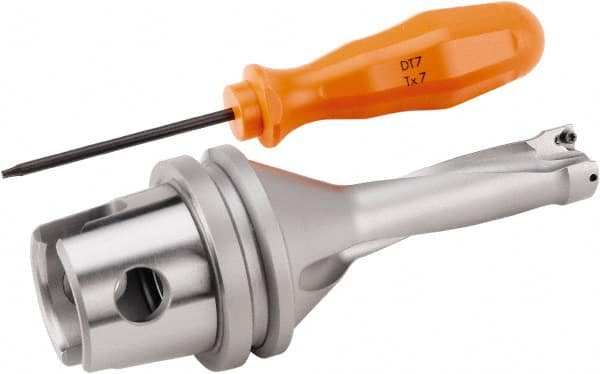

2-1/4″ Max Drill Depth, 3xD, 3/4″ Diam, Indexable Insert Drill Drill Style DFT, Takes 2 Inserts, 50mm Shank Diam, Modular Connection
Item #: 76771948
Brand: Kennametal
Model #: 1247502
Product Specifications
| Drill Style | DFT |
| Maximum Drill Diameter (mm) | 20.68 |
| Drill Diameter (Decimal Inch) | 0.7500 |
| Maximum Drill Diameter (Decimal Inch) | 0.8140 |
| Maximum Drill Depth (Inch) | 2-1/4 |
| Shank Type | Modular Connection |
| Shank Diameter (Decimal Inch) | 1.9685 |
| Shank Diameter (mm) | 50.00 |
| Number of Drill Inserts | 2 |
| Drill Diameter Range (Decimal Inch) | 0.7500 to 1.0000 |
| Cutting Direction | Right Hand |
| Tool Material | Steel |
| Drill Depth by Diameter Ratio | 3xD |
| Series | Drill-Fix |
| Flute Length (Decimal Inch) | 2.9921 |
| Flute Length (mm) | 76.00 |
| Body Length | 102.16 |
| Body Length (Decimal Inch) | 4.0220 |
| Shank Length (Decimal Inch) | 1.2598 |
| Shank Length (mm) | 32.00 |
| Modular Connection Size | KM50 |
| Overall Length/Projection (Decimal Inch) | 4.0220 |
| Overall Length/Projection (mm) | 102.16 |
| Insert Compatibility (Outside or Peripheral) | DFT 0303.. |
| Insert Compatibility | DFT 0303.. |
| Collar Diameter (Decimal Inch) | 1.9685 |
| Collar Diameter (mm) | 50.00 |
| Coolant Through | Yes |
