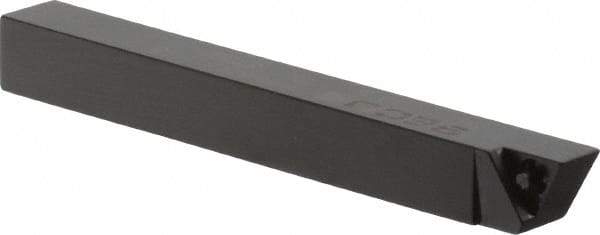

Seco - PTAP, Right Hand Cut, 90° Lead Angle, 1/2" Shank Height x 1/2" Shank Width, Positive Rake Indexable Turning Toolholder - 4-1/2" OAL, TPMM 2.52.. Insert Compatibility, Series Multi-Directional Turning (MDT)
Item #: 76739515
Brand: Seco
Model #: 15715
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | PTAP |
| Rake | Positive |
| Rake Angle | 5 |
| Series | Multi-Directional Turning (MDT) |
| Lead Angle | 90 |
| Shank Width (Decimal Inch) | 0.5000 |
| Shank Height (Decimal Inch) | 0.5000 |
| Overall Length (Decimal Inch) | 4.5000 |
| Insert Compatibility | TPMM 2.52.. |
| Multi-Use Tool | No |
| Insert Holding Method | Pin |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5100 |
| Insert Inscribed Circle (Inch) | 5/16 |
| Insert Inscribed Circle (Decimal Inch) | 0.3125 |
