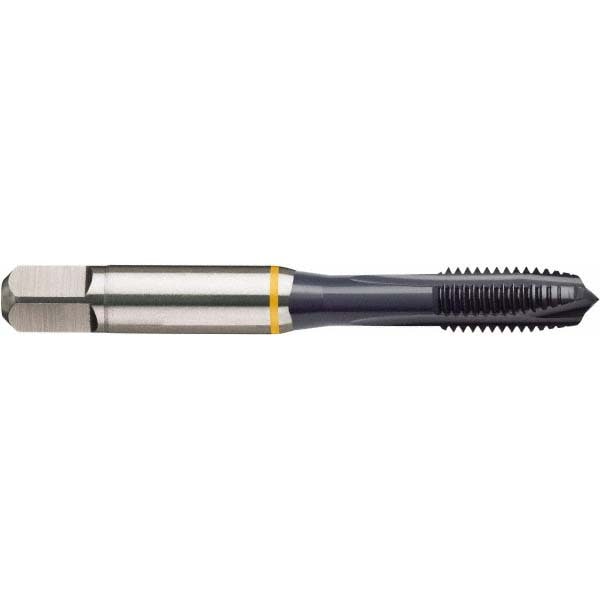

Spiral Point Tap: M8x1 Metric Fine, 3 Flutes, Plug Chamfer, 6H Class of Fit, HSS-E Cobalt, Ignator Coated
Item #: 04629994
Brand: Guhring
Model #: 9048880080050
Product Specifications
| Thread Size (mm) | M8x1 |
| Thread Standard | Metric Fine |
| Chamfer | Plug |
| Material | HSS-E Cobalt |
| Thread Limit | D4/D5 |
| Class Of Fit | 6H |
| Coating/Finish | Ignator |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Number Of Flutes | 3 |
| Material Application | Steel |
| Oversize | No |
| Interrupted Thread | No |
| Threads per Inch | 25.4 |
| Overall Length (Inch) | 2-23/32 |
| Overall Length (Decimal Inch) | 2.721 |
| Thread Pitch (mm) | 1 |
| Thread Length (Decimal Inch) | 1.3770 |
| Shank Diameter (Decimal Inch) | 0.3180 |
| Application | Through-Hole Threading |
| Neck Length (Decimal Inch) | 1.3770 |
| Measurement Type | Decimal Inch |
| Series | 4888 |
| Style | Spiral Point |
| UNSPSC Code | 23241600 |
