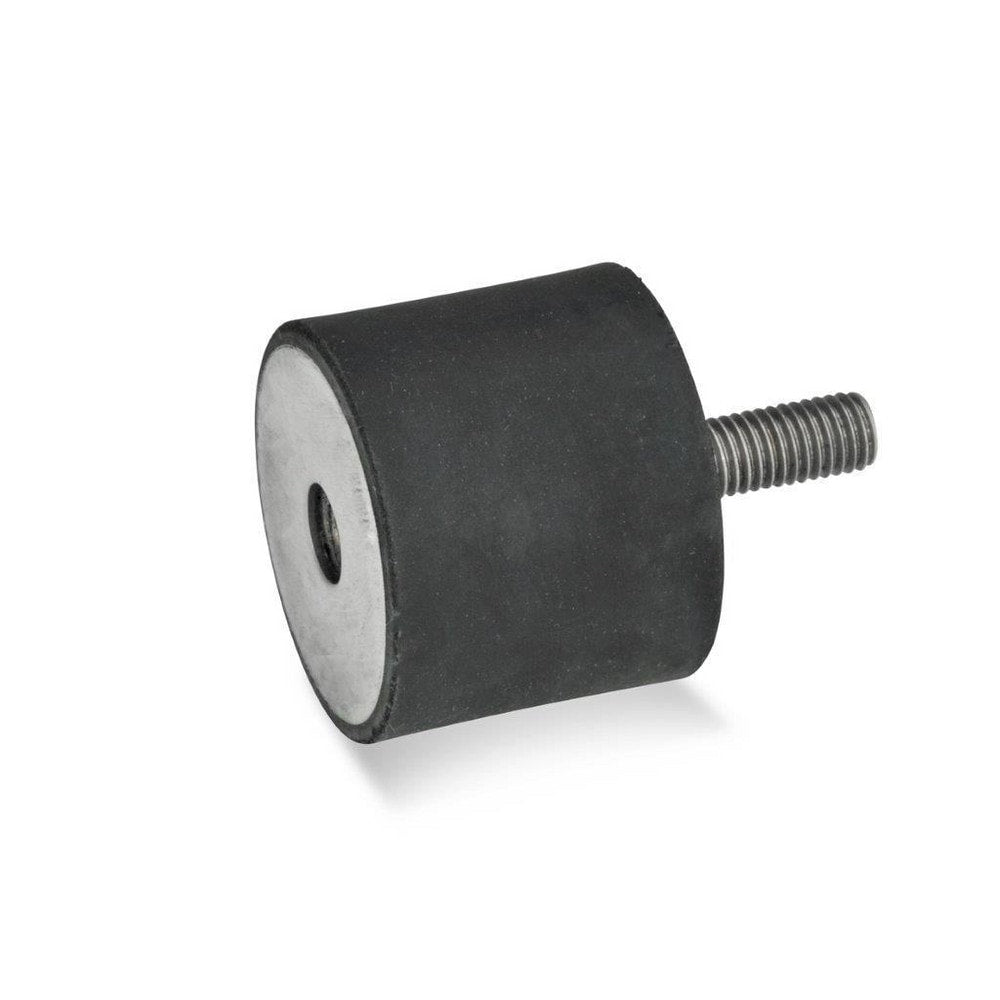

Vibration Isolators; Isolator Type: Plate/Stud; Insert Material: Stainless Steel; Isolator Material: Natural Rubber; Maximum Load Capacity: 12970.00 N; Top Diameter: 75.00; Bottom Diameter: 75; Thread Size: M12x1.75; Overall Width: 75 mm
Item #: 69308930
Brand: J.W. Winco
Model #: 451-75-25-M12-ES-55
Product Specifications
| Isolator Type | Plate/Stud |
| Insert Material | Stainless Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 12970.00 N |
| Top Diameter | 75.00 |
| Bottom Diameter | 75 |
| Thread Size | M12x1.75 |
| Overall Width | 75 mm |
| Overall Diameter | 75 mm |
| Thread Length (Decimal Inch) | 1.4600 |
| Deflection | 0.2500 |
| Hardness Rating | Shore 55A |
| Mount Type | Stud; Plate |
| Shape | Round |
| Thread Depth | 11.0000 |
| Thread Pitch | 1.75 mm |
| Thread Standard | Metric |
| Height (Decimal Inch) | 62 mm |
| UNSPSC Code | 23153130 |
| Isolator Type | Plate/Stud |
| Insert Material | Stainless Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 12970.00 N |
| Top Diameter | 75.00 |
| Bottom Diameter | 75 |
| Thread Size | M12x1.75 |
| Overall Width | 75 mm |
| Overall Diameter | 75 mm |
| Thread Length (Decimal Inch) | 1.4600 |
| Deflection | 0.2500 |
| Hardness Rating | Shore 55A |
| Mount Type | Stud; Plate |
| Shape | Round |
| Thread Depth | 11.0000 |
| Thread Pitch | 1.75 mm |
| Thread Standard | Metric |
| Height (Decimal Inch) | 62 mm |
| UNSPSC Code | 23153130 |
| MSC Part # | 69308930 |
| Mfr Part # | 451-75-25-M12-ES-55 |
| Country of Origin Country of Origin is subject to change | Hungary |
