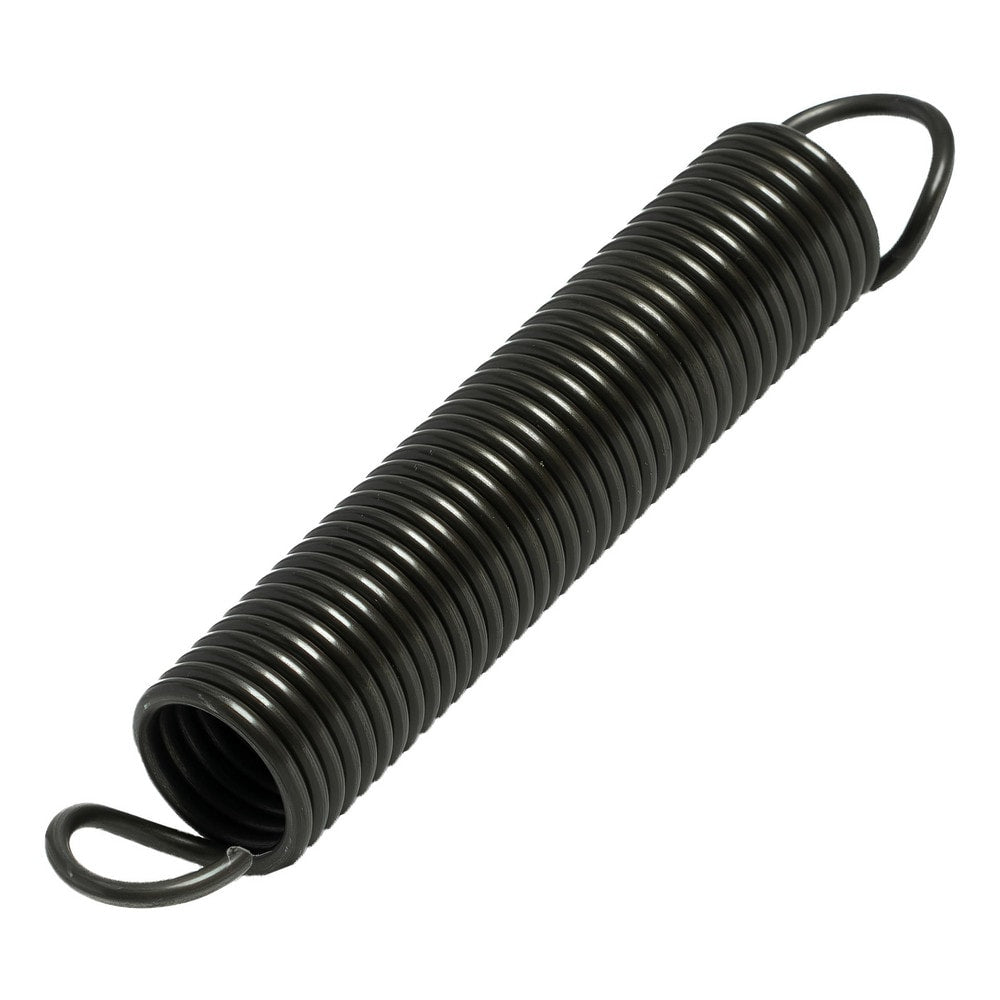

Extension Springs; End Type: Full Twist Loop; Outside Diameter (mm): 11.0000; Spring Rate: 8.0000; Material: Music Wire; Overall Length (Decimal Inch): 4.2760
Item #: 02993921
Brand: Associated Spring Raymond
Model #: MCEM1101600105M
Product Specifications
| End Type | Full Twist Loop |
| Outside Diameter (mm) | 11.0000 |
| Spring Rate | 8.0000 |
| Material | Music Wire |
| Overall Length (Decimal Inch) | 4.2760 |
| Initial Tension (N) | 21.66 |
| Maximum Extended Length (mm) | 169.31 |
| Free Length (mm) | 105.300 |
| Inside Hook Length (Fractional Inch) | 4-5/32 |
| Standards | JIS G3522 SWP - A/B; EN 10270-1; ASTM A228 |
| Finish/Coating | Dry to Touch Oil |
| Wire Size (mm) | 1.60 |
| UNSPSC Code | 31161907 |
