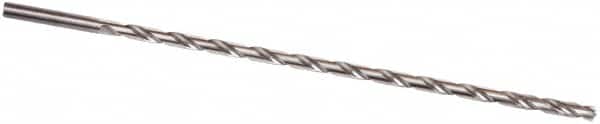

Extra Length Drill Bit: 0.6299″ Dia, 135 °, Solid Carbide Bright Finish, 10.7874″ Flute Length, Spiral Flute, Straight-Cylindrical Shank, Series B271-HPS
Item #: 76273242
Brand: Kennametal
Model #: 3891739
Product Specifications
| Drill Bit Size (mm) | 16.00 |
| Overall Length (mm) | 333.00 |
| Flute Length (mm) | 274.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | Bright |
| Drill Point Angle | 135 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Series | B271-HPS |
| Point Type | Standard |
| Cutting Direction | Right Hand |
| Spiral Type | Regular |
| Drill Bit Diameter Tolerance | -0.0011 to 0.0000 in; -0.027 to 0.000 mm |
| Number Of Flutes | 2 |
| Web Configuration | Tapered |
| Drill Bit Size (Decimal Inch) | 0.6299 |
| Drill Point Length (mm) | 2.95 |
| Drill Point Length (Decimal Inch) | 0.1163 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Shank Diameter (mm) | 16.00 |
| Shank Length (Decimal Inch) | 2.2047 |
| Shank Length (mm) | 56.00 |
| Flute Length (Decimal Inch) | 10.7874 |
| Flute By Diameter Ratio | 15xD |
| Maximum Drilling Depth (Decimal Inch) | 9.4488 |
| Maximum Drilling Depth (mm) | 240.00 |
