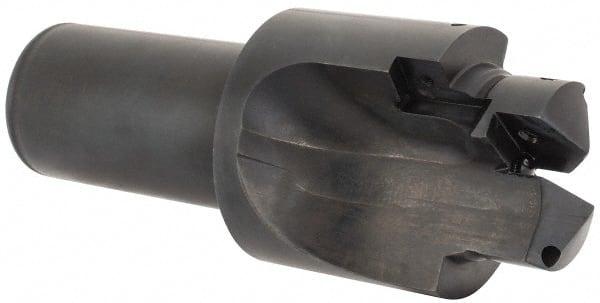

Allied Machine and Engineering - 1-5/8-12, 1.535" Pilot Diam, 2.309" Spotface Diam, 0.906" Pilot Length, Tube Dash 20, Indexable Porting Tool
Item #: 76038983
Brand: Allied Machine and Engineering
Model #: J1926-203-150F
Product Specifications
| Port Standard Designation | IS0 11926-1; SAE J1926-1/MS-16142 |
| Pilot Insert Type | Spade Blade Insert |
| Port Thread Size | 1-5/8-12 |
| Tube Dash Number | 20 |
| Pilot Diameter (Decimal Inch) | 1.5350 |
| Spotface Diameter (Decimal Inch) | 2.3090 |
| Pilot Length (Decimal Inch) | 0.9060 |
| Number of Porting Inserts | 2 |
| Porting Insert Style | J1926-10-C3H; J1926-10-C5A |
| Porting Diameter (Decimal Inch) | 1.7150 |
| Overall Length (Decimal Inch) | 5.7500 |
| Through Coolant | NonThrough Coolant |
| Porting Angle | 15 |
| Porting Angle Length (Decimal Inch) | 0.1380 |
| Head Length (Decimal Inch) | 3.0620 |
| Shank Length (Decimal Inch) | 2.6880 |
| Spotface to Shoulder Length (Decimal Inch) | 1.8350 |
| Series | AccuPort 432 |
