Allied Machine and Engineering - 1-1/16-12, 0.984" Pilot Diam, 1.657" Spotface Diam, 0.906" Pilot Length, Tube Dash 12, Indexable Porting Tool - Exact Industrial Supply

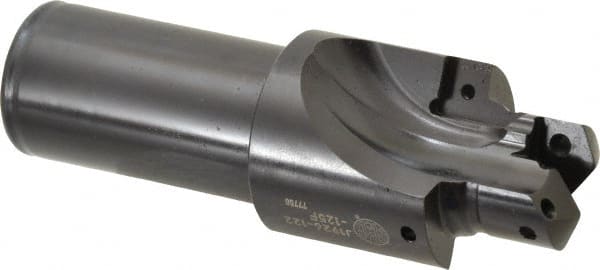

Allied Machine and Engineering - 1-1/16-12, 0.984" Pilot Diam, 1.657" Spotface Diam, 0.906" Pilot Length, Tube Dash 12, Indexable Porting Tool


Item #: 76038926
Brand: Allied Machine and Engineering
Model #: J1926-122-125F

Product Specifications

Port Standard Designation IS0 11926-1; SAE J1926-1/MS-16142
Pilot Insert Type Spade Blade Insert
Port Thread Size 1-1/16-12
Tube Dash Number 12
Pilot Diameter (Decimal Inch) 0.9840
Spotface Diameter (Decimal Inch) 1.6570
Pilot Length (Decimal Inch) 0.9060
Shank Diameter (Inch) 1-1/4
Shank Diameter (Decimal Inch) 1.2500
Number of Porting Inserts 2
Porting Insert Style J1926-08-C3H; J1926-08-C5A
Porting Diameter (Decimal Inch) 1.1500
Overall Length (Decimal Inch) 4.9210
Through Coolant NonThrough Coolant
Porting Angle 15
Porting Angle Length (Decimal Inch) 0.1380
Head Length (Decimal Inch) 2.6400
Shank Length (Decimal Inch) 2.2810
Spotface to Shoulder Length (Decimal Inch) 1.5300
Series AccuPort 432
$543.94
