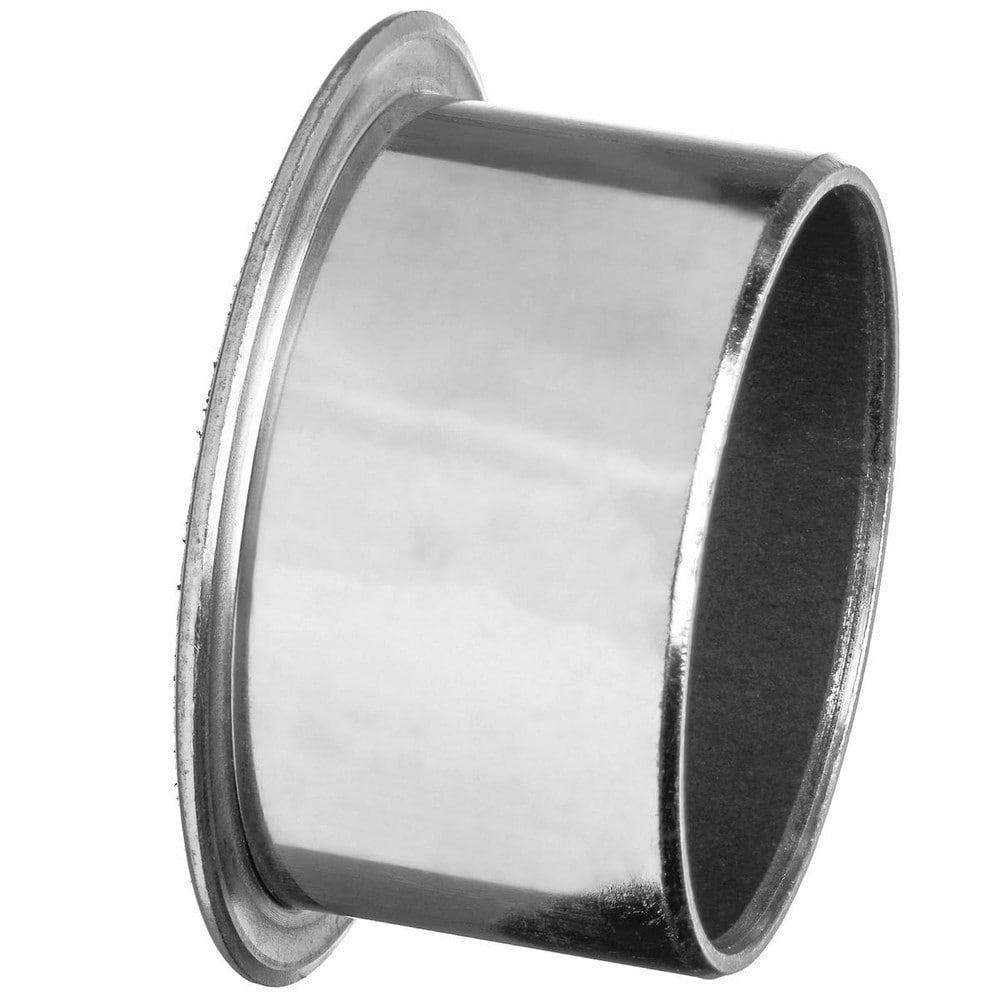

Sleeve Bearings; Bearing Type: Flanged; Outside Diameter (Inch): 35/64; Outside Diameter (Decimal Inch - 4 Decimals): 0.5469; Inside Diameter (Inch): 15/32; Inside Diameter (Decimal Inch): 0.4688
Item #: 76802255
Brand: USA Industrials
Model #: ZUSAB-PB-391
Product Specifications
| Bearing Type | Flanged |
| Outside Diameter (Inch) | 35/64 |
| Outside Diameter (Decimal Inch - 4 Decimals) | 0.5469 |
| Inside Diameter (Inch) | 15/32 |
| Inside Diameter (Decimal Inch) | 0.4688 |
| Flange Outside Diamete (mm) | 20.00 |
| Material | Steel |
| Overall Length (Inch) | 11/32 |
| Overall Length (Decimal Inch) | 0.3438 |
| Static Load Capacity | 38453.55 |
| Dynamic Load Capacity | 2923960.790 |
| Maximum Pressure X Velocity | 406 |
| Bore Type | Plain |
| Lubricant Type | PTFE |
| Temperature Range | -320 to 530 Deg F |
| Housing Bore Limits Maximum | 14.0180 |
| Housing Bore Limits Mininum | 14.0000 |
| Flange Thickness (mm) | 1.00 |
| Inside Diameter (mm) | 12.0000 |
| Overall Length (mm) | 9 |
| UNSPSC Code | 31171501 |
| Country of Origin | United Kingdom |
