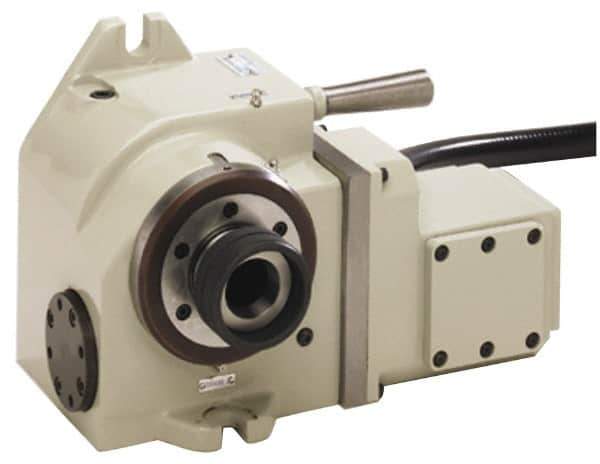

Yuasa - 2 Spindle, 100 Max RPM, 0.53 hp, Horizontal & Vertical CNC Collet Rotary Indexer - 20 kg (44 Lb) Max Horiz Load, 150.11mm Centerline Height
Item #: 76000330
Brand: Yuasa
Model #: DMNC-5CA-2
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Indexer Type | Collet Indexer |
| Number of Spindles | 2 |
| Collet Compatibility | 5C |
| Maximum RPM | 100 |
| Setting Position | Horizontal; Vertical |
| Maximum Horizontal Load Capacity (Lb.) | 44 |
| Maximum Horizontal Load Capacity (kg) | 20 |
| Maximum Vertical Load Capacity (Lb.) | 22 |
| Maximum Vertical Load Capacity (kg) | 10 |
| Centerline Height (mm) | 150.11 |
| Centerline Height (Decimal Inch) | 5.9100 |
| Through Hole Size (mm) | 28.30 |
| Through Hole Size (Decimal Inch) | 1.1140 |
| Table Torque (Ft/Lb) | 65.00 |
| Table Torque (kg-m) | 8.99 |
| Resolution (Decimal Inch) | 0.0010 |
| Positioning Accuracy (sec.) | 20.00 |
| Motor Type | AC Servo |
| Voltage | 105 to 240 |
| Horsepower (HP) | 0.53 |
| For Use With | CNC 4-Axis Rotary Table |
| Includes | 5C Air Collet Closer; Home Limit Switch |
