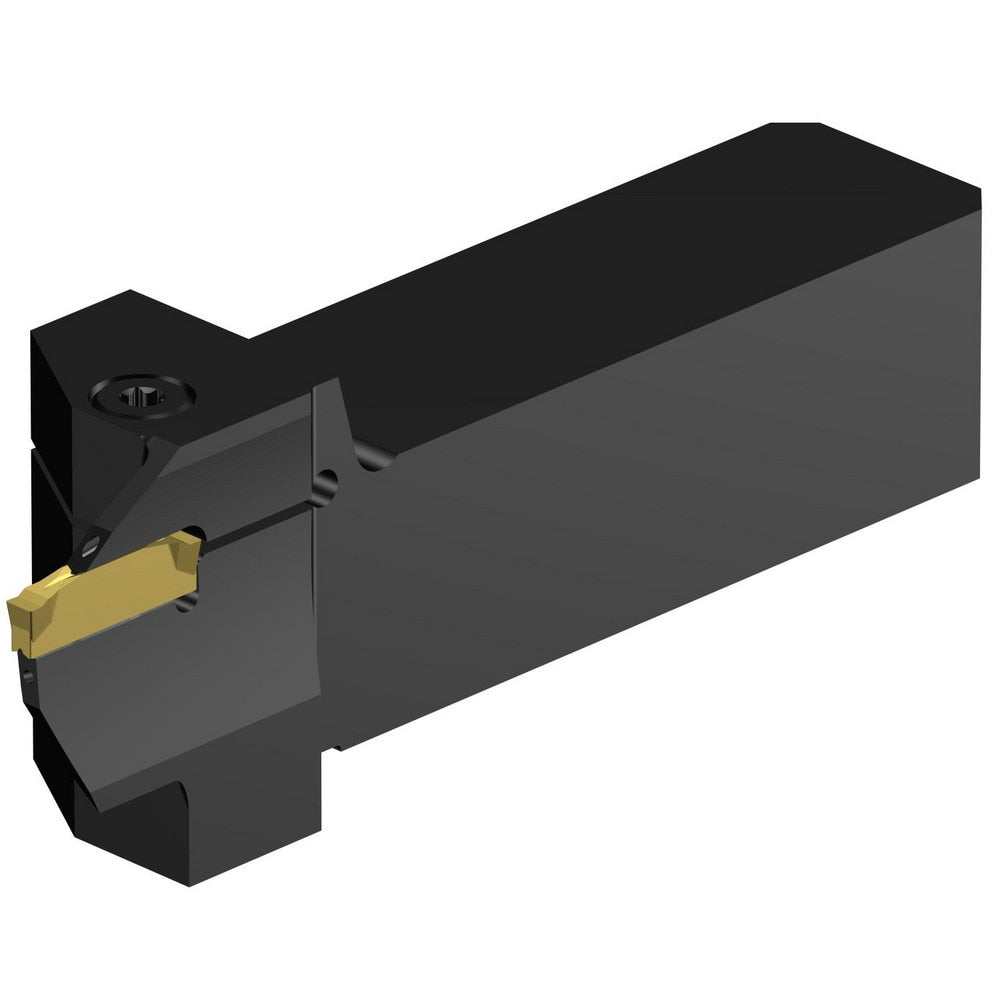

Indexable Grooving Toolholder: C2A-QSA16-RFG15B-090CB, Internal or External, Left Hand, Right Hand & Neutral, 6.2990" Max Groove Width
Item #: 01227024
Brand: Sandvik Coromant
Model #: 8289899
Product Specifications
| Internal or External | Internal or External |
| Toolholder Type | Face Grooving |
| Insert Seat Size | 3.00 |
| Hand of Holder | Right Hand |
| Cutting Direction | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.5900 |
| Maximum Depth of Cut (mm) | 14.99 |
| Minimum Groove Width (Decimal Inch) | 3.5430 |
| Minimum Groove Width (mm) | 89.99 |
| Maximum Groove Width (mm) | 159.99 |
| Toolholder Style | C2A-QSA..RF..B..CB |
| Maximum Groove Width (Decimal Inch) | 6.2990 |
| Insert Holding Method | Screw; Clamp |
| Compatible Insert Size Code | G2 |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Width (mm) | 25.40 |
| Shank Height (mm) | 25.40 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | CoroCut 2 |
| Overall Length (mm) | 116.76 |
| Overall Length (Decimal Inch) | 4.5970 |
| Back of Bar to Cutting Edge (mm) | 116.76 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.5970 |
| Center to Cutting Edge (Decimal Inch) | 1.0200 |
| Center to Cutting Edge (mm) | 25.91 |
| Head Height (Decimal Inch) | 1 |
| Head Height (mm) | 25.400 |
| Head Length (Decimal Inch) | 2.2943 |
| Head Length (mm) | 58.27 |
| UNSPSC Code | 27112809 |
| Vibration Dampening | No |
| Maximum Groove Outside Diameter (mm) | 159.99 |
| Maximum Groove Outside Diameter (Decimal Inch) | 6.2990 |
| Minimum Axial Groove Inside Diameter(mm) | 89.9900 |
| Minimum Axial Groove Inside Diameter (Decimal Inch) | 3.5430 |
| Mount Type | Clamp |
| Full Radius Insert | No |
| Manufacturers Catalog Number | C2A-QSA16-RFG15B-090CB |
| Toolholder Material | Steel |
| Insert Hand | Neutral; Left Hand; Right Hand |
| Complete Insert Compatibility | C2I-G2-0300- |
| Coolant Through | Yes |
