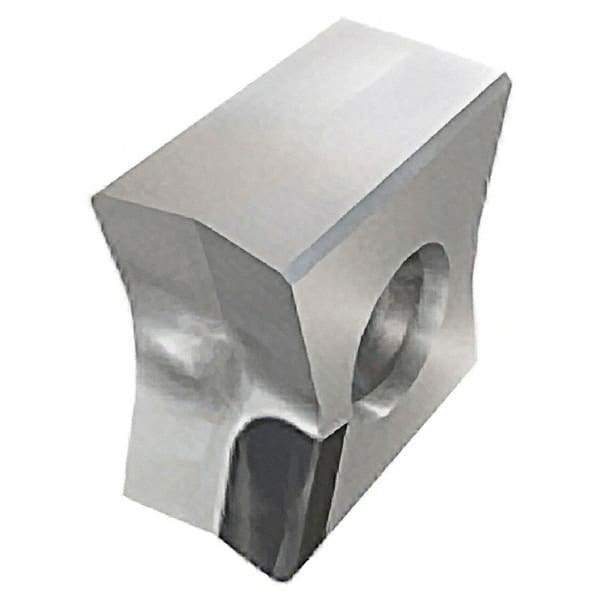

Iscar - LNAW1106 S Grade IB85 CBN Milling Insert - Uncoated, 0.465" Thick, 0.79mm Corner Radius
Item #: 75876201
Brand: Iscar
Model #: 5605218
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | LNAW |
| Insert Size | 1106 |
| Material | CBN |
| Manufacturer's Grade | IB85 |
| Coating | Uncoated |
| Width (Decimal Inch) | 0.2360 |
| Length (Decimal Inch) | 0.4400 |
| Thickness (Decimal Inch) | 0.4650 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.79 |
| Relief Angle | 0.000 |
| Included Angle | 90 |
| Shape | Rectangle |
| Insert Hand | Right Hand |
| Chipbreaker | S |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| ISO Number | LNAW 1106PNT-R-S |
