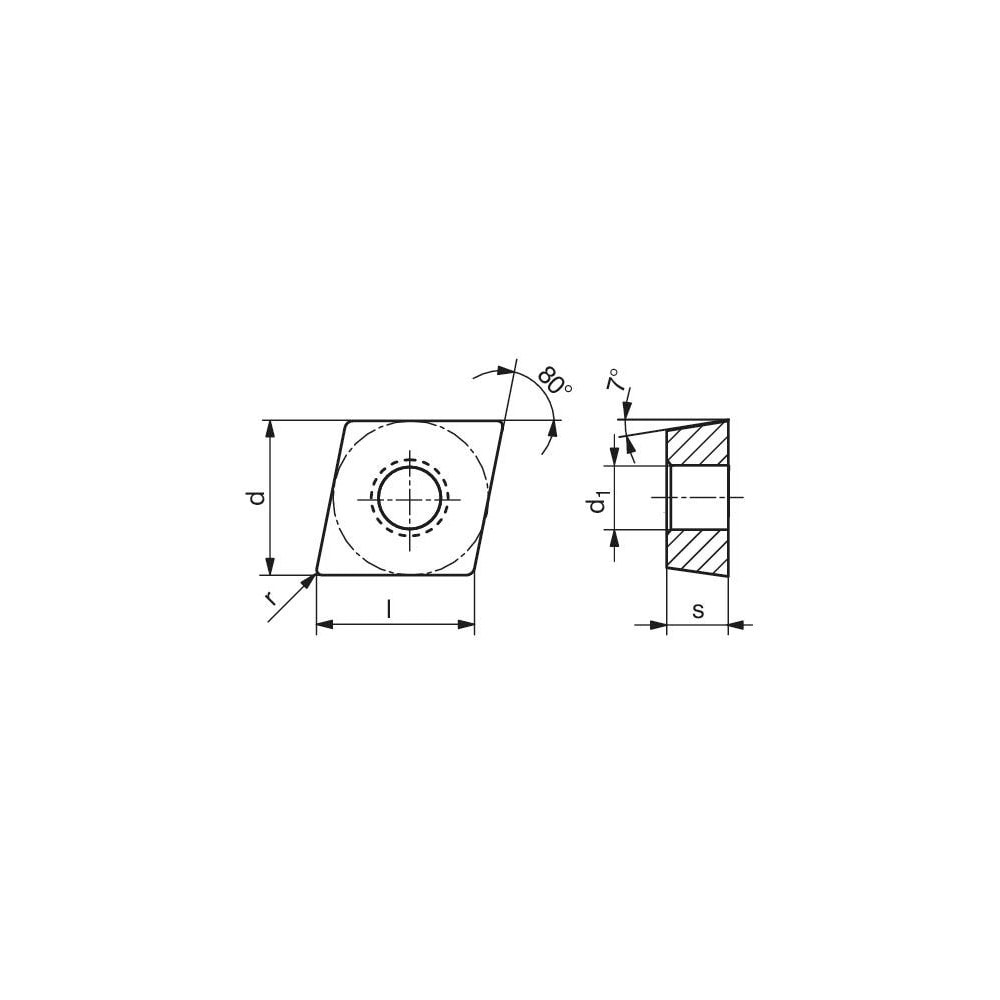

Turning Insert: CCMT32.52EN-29 CTPX715, Carbide
Item #: 26293993
Brand: Ceratizit
Model #: 7024571800
Product Specifications
| ANSI Insert Code | CCMT32.52 |
| ISO Insert Code | CCMT09T308 |
| Relief Angle | 7 |
| Insert Style | CCMT |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 80 |
| Manufacturer Grade | CTPX715 |
| Coating/Finish | AlTiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Series | CCMT |
| Inscribed Circle (Decimal Inch) | 0.3748 |
| Insert Material | Carbide |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance; Stainless Steel (M) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - High Wear-Resistance |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Maximum Depth of Cut (Decimal Inch) | 0.3819 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Superalloy; Stainless Steel; Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M; N |
| Secondary Workpiece Material | Non-Ferrous Metal |
| Secondary Workpiece Material Code | N |
| Iso Code | CCMT 09T308EN-29 CTPX715 |
| Chip Breaker | 29 |
| ANSI Size Code | 32.52 |
| ISO Size Code | 09T308 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 32.52 |
