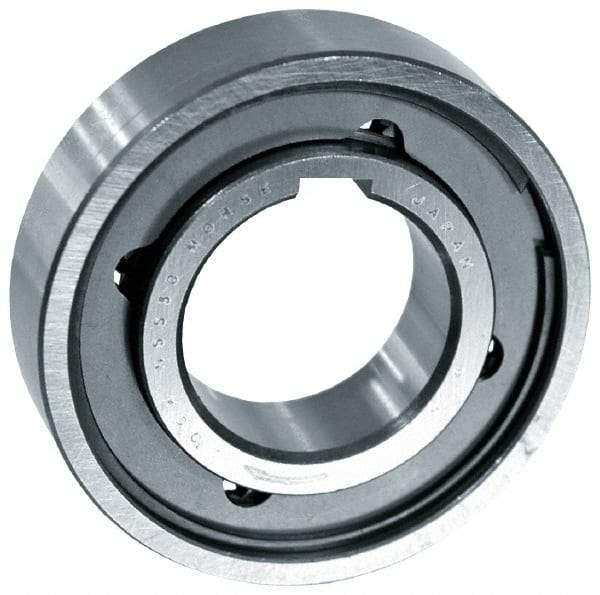

Morse - 30mm Bore Diam, 160" OAL, Overrunning Clutch - 105 Torque N/M, 8 x 2mm Keyway, +0.021/-0.000mm Bore Tolerance
Item #: 75674895
Brand: Morse
Model #: NSS-30 CLUTCH
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Bore Diameter (mm) | 30.000 |
| Type. | Overrunning |
| Torque Newton/Meters | 105.00 |
| Overall Length (mm) | 16.0000 |
| Bore Tolerance mm (mm) | +0.021/-0.000 |
| Keyway | 8 x 2.0 |
| Drag Torque Newtons/Meter | 0.030 |
| Maximum Inner Race RPM | 1800.000 |
| Maximum Outer Race RPM | 900.000 |
| Diameter (mm) | 62.0000 |
