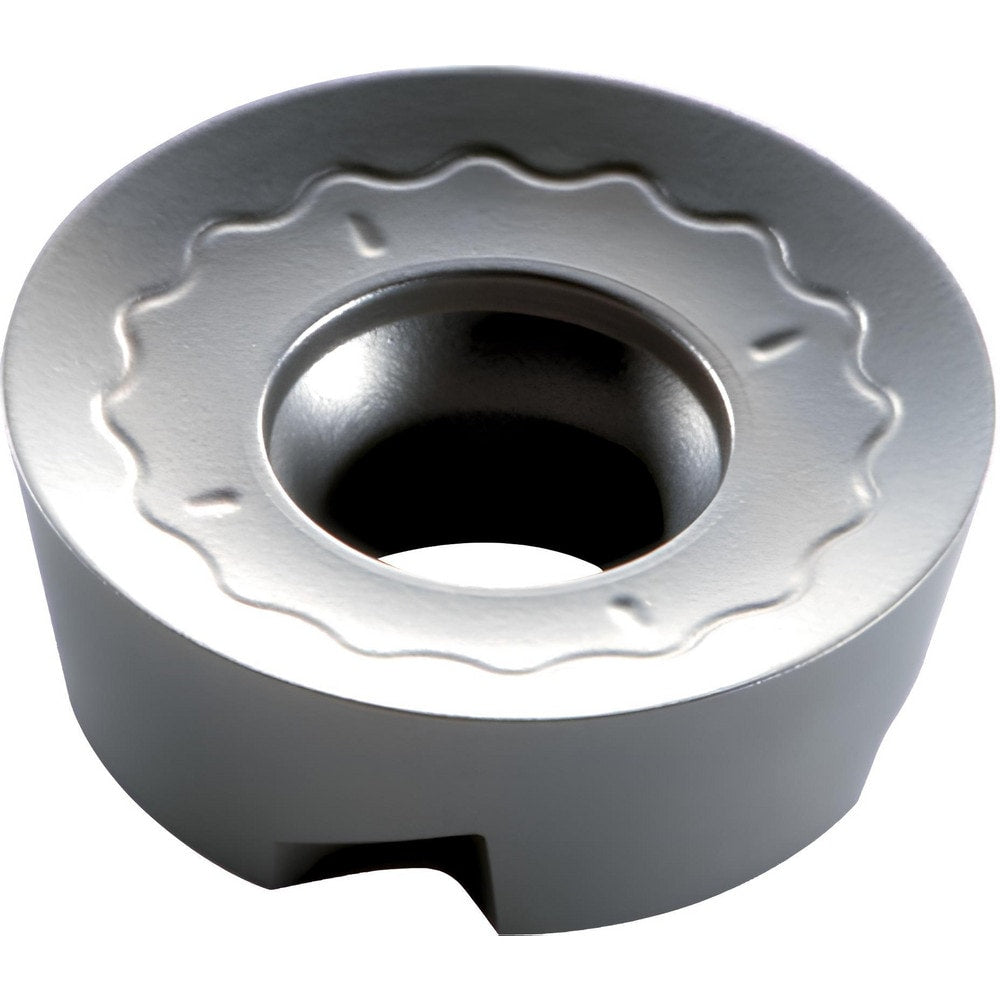

Milling Insert: RPHT10T3MOEN-GL XP2025, Solid Carbide
Item #: 33626888
Brand: OSG
Model #: 7826008
Product Specifications
| Insert Style | RPHT |
| Insert Size | 10 |
| Insert Material | Solid Carbide |
| Insert Shape | Round |
| Manufacturer Grade | XP2025 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1563 |
| Coating/Finish | TiALN |
| Relief Angle | 11.00 |
| Insert Size Code | 10T3 |
| Thickness (Inch) | 5/32 |
| Inscribed Circle (Decimal Inch) | 0.3937 |
| Inscribed Circle (mm) | 10.00 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Series | RPHT |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Ansi Code | RPHT10T3MOEN-GL |
| Iso Code | RPHT10T3MOEN-GL |
| Standards | ISO; ANSI |
| Convex Radius (Decimal Inch) | 0.1969 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | 7826008 |
| Chip Breaker | GL |
| UNSPSC Code | 23171618 |
| Material Application | Stainless Steel; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 360 |
| Width (Decimal Inch - 4 Decimals) | 0.3937 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.3937 |
