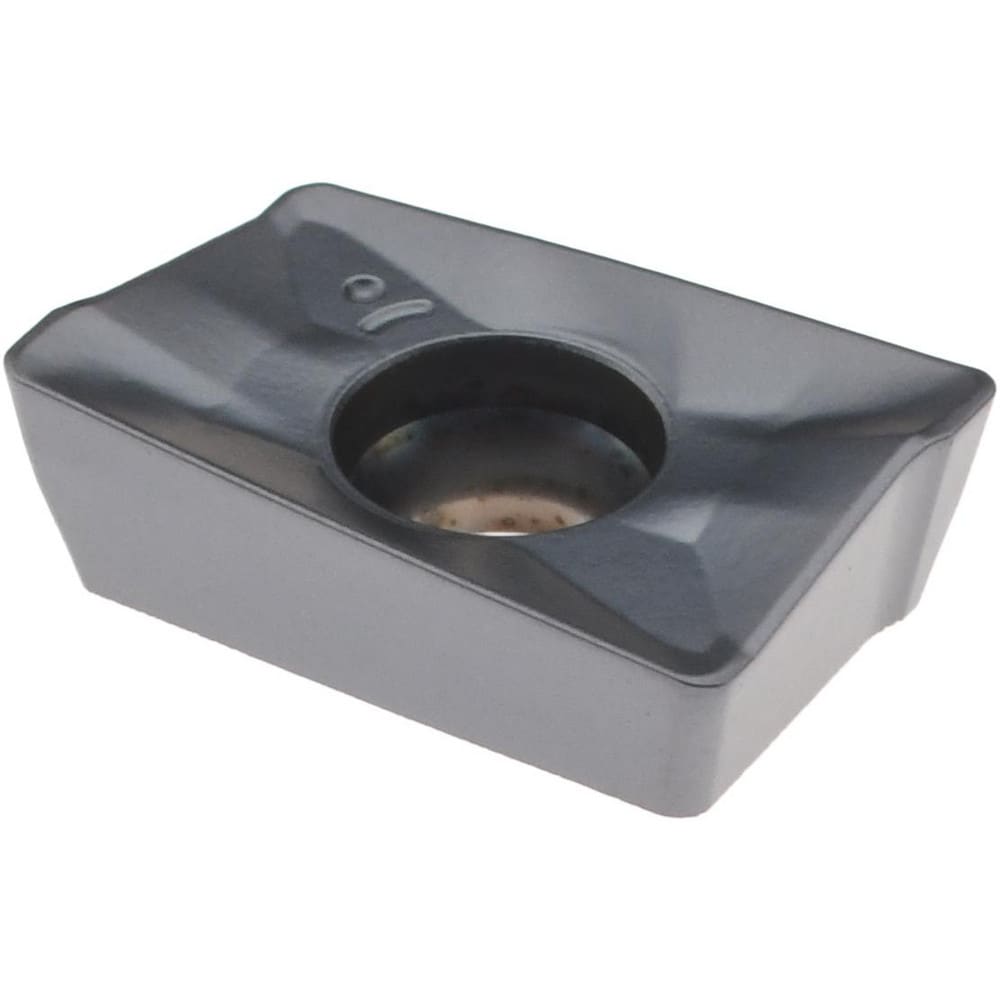

Milling Insert: APKT1003PDERSCM ACM40P, Solid Carbide
Item #: 54054846
Brand: Accupro
Model #: 54054846
Product Specifications
| Insert Style | APKT |
| Insert Size | 10 |
| Insert Material | Solid Carbide |
| Insert Shape | Rectangle |
| Manufacturer Grade | ACM40P |
| Corner Radius (Decimal Inch) | 0.0197 |
| Corner Radius (mm) | 0.50 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1378 |
| Thickness (mm) | 3.5000 |
| Coating/Finish | PVD |
| Relief Angle | 11.000 |
| Insert Size Code | 10 |
| Inscribed Circle (Decimal Inch) | 0.2657 |
| Inscribed Circle (mm) | 6.75 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Maximum Depth of Cut (mm) | 10.00 |
| Series | CI |
| Rake | Positive |
| Iso Code | APKT1003PDERSCM |
| Cutter Series Compatibility | APKT |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Single |
| Length (mm) | 6.75 |
| Width (Decimal Inch - 4 Decimals) | 0.2657 |
| Width (mm - 2 Decimals) | 6.75 |
| Length (Decimal Inch - 4 Decimals) | 0.2657 |
| Insert Style | APKT |
| Insert Size | 10 |
| Insert Material | Solid Carbide |
| Insert Shape | Rectangle |
| Manufacturer Grade | ACM40P |
| Corner Radius (Decimal Inch) | 0.0197 |
| Corner Radius (mm) | 0.50 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1378 |
| Thickness (mm) | 3.5000 |
| Coating/Finish | PVD |
| Relief Angle | 11.000 |
| Insert Size Code | 10 |
| Inscribed Circle (Decimal Inch) | 0.2657 |
| Inscribed Circle (mm) | 6.75 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Maximum Depth of Cut (mm) | 10.00 |
| Series | CI |
| Rake | Positive |
| Iso Code | APKT1003PDERSCM |
| Cutter Series Compatibility | APKT |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Single |
| Length (mm) | 6.75 |
| Width (Decimal Inch - 4 Decimals) | 0.2657 |
| Width (mm - 2 Decimals) | 6.75 |
| Length (Decimal Inch - 4 Decimals) | 0.2657 |
| MSC Part # | 54054846 |
| Mfr Part # | 54054846 |
| Country of Origin Country of Origin is subject to change | VARIOUS |
