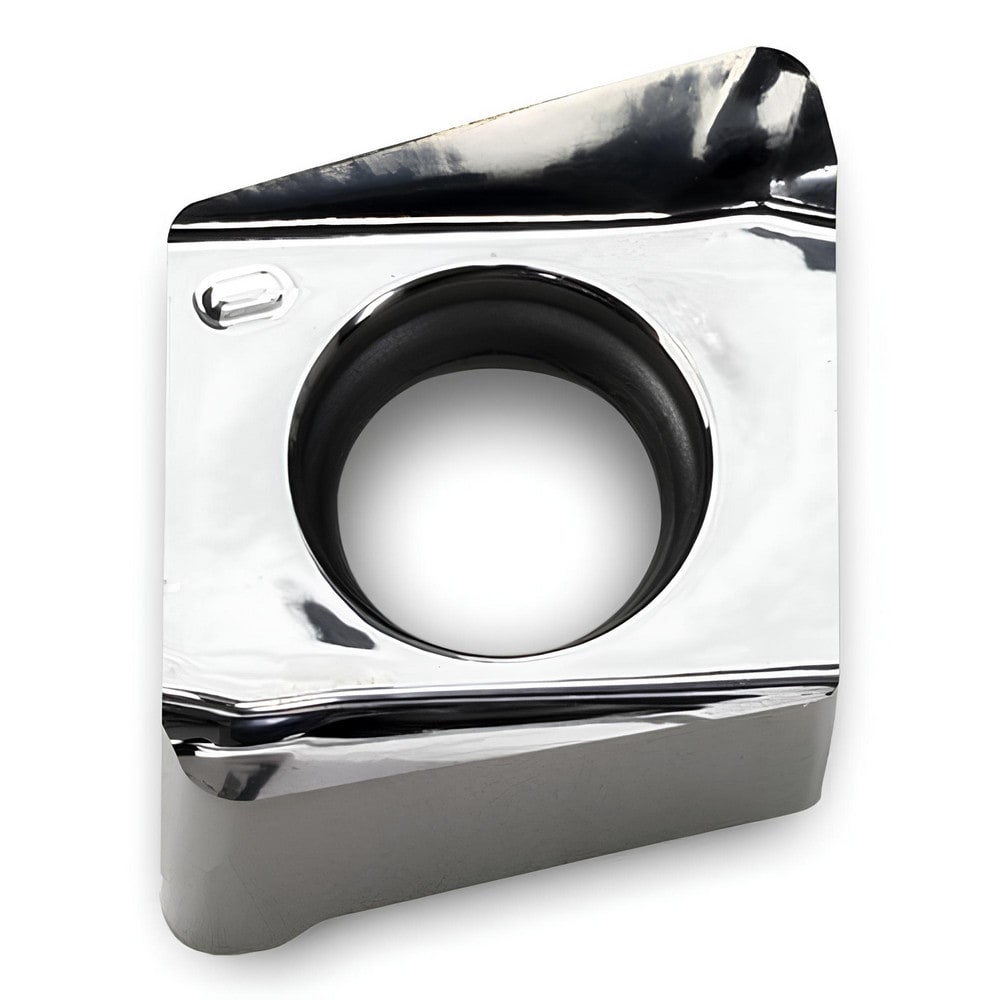

Brand: Ingersoll Cutting Tools / Part #: 6226866
Item #: 90987298
Brand: Ingersoll Cutting Tools
Model #: 6226866
Product Specifications
| Insert Style | MNCU |
| Insert Size Code | 140708 |
| Insert Material | Carbide |
| Manufacturer Grade | IN10K |
| Inscribed Circle (mm) | 14.00 |
| Corner Radius (Inch) | 1/32 |
| Insert Hand | Right Hand |
| Series | MNCU |
| Coating Process | Uncoated |
| Maximum Depth of Cut (Decimal Inch) | 0.5310 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Parallelogram |
| Rake | Negative |
| Primary Workpiece Material | Non-Ferrous Metal; Cast Iron |
| Primary Workpiece Material Code | K; N |
| Ansi Code | MNCU140708FR-AL |
| Rake Angle | 0.000 |
| Manufacturers Catalog Number | MNCU140708FR-AL IN10K |
| Cutter Series Compatibility | TJ.J; 1TJ1J |
| Chip Breaker | AL |
| Cutting Direction | Right Hand |
| Shape | Parallelogram |
| Length of Cut (mm) | 13.4900 |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Double |
| Coating/Finish | Uncoated |
| Included Angle Degree | 86 |
| Length | 14.00 |
| Width (Mm - 2 Decimals) | 14.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.3660 |
| Multi-Use Tool | No |
