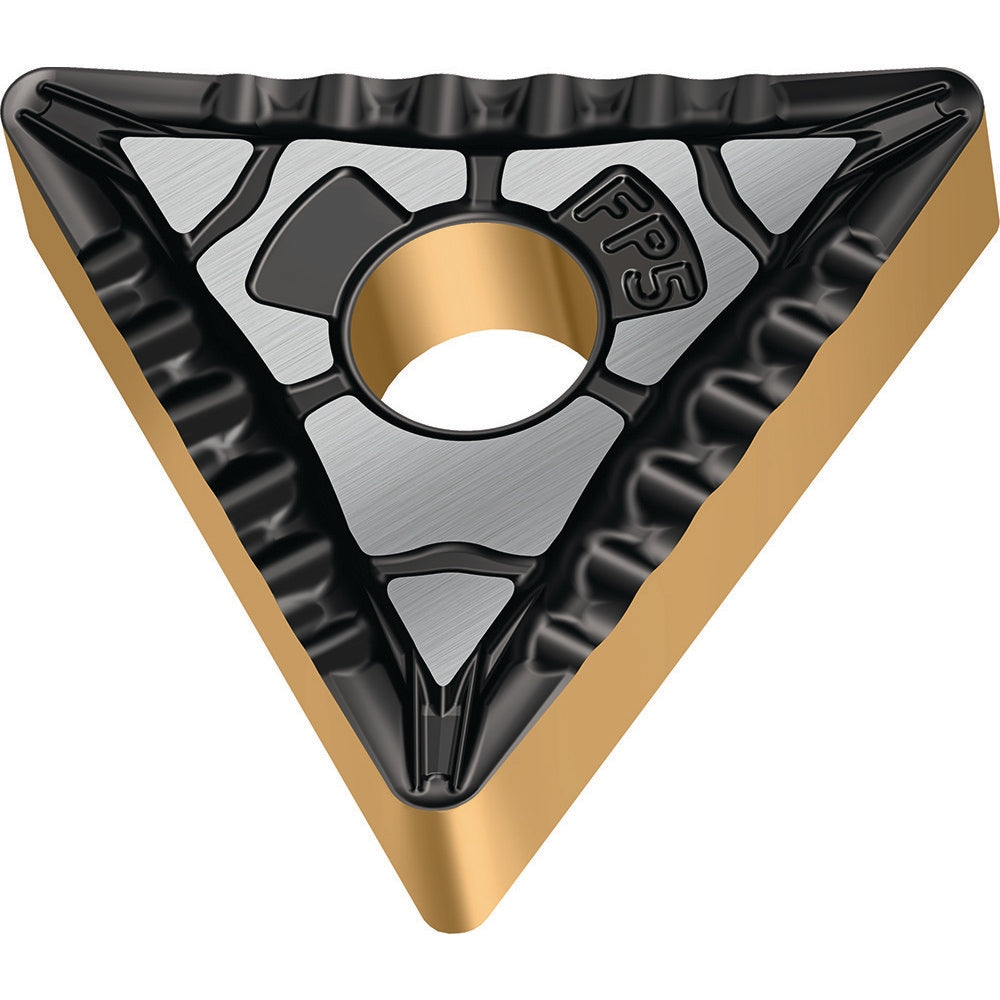

Turning Insert: TNMG332FP5 WKP01G, Carbide
Item #: 91738237
Brand: Walter
Model #: 8422897
Product Specifications
| ANSI Insert Code | TNMG332 |
| ISO Insert Code | TNMG160408 |
| Relief Angle | 0.000 |
| Insert Style | TNMG |
| Corner Radius (mm) | 0.80 |
| Included Angle | 60.00 |
| Manufacturer Grade | WKP01G |
| Coating/Finish | TiCN+Al2O3+(TiN) |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness | 4.76 |
| Series | TNMG |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | Carbide |
| Insert Shape | Triangle |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance; Steel (P) - High Wear-Resistance |
| Side Clearance | Negative |
| Number Of Cutting Edges | 6 |
| Insert Shape Code | T |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.8100 |
| Maximum Depth of Cut (mm) | 2.00 |
| Insert Holding Method | Screw |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Length (mm) | 16.50 |
| Manufacturers Catalog Number | TNMG160408-FP5 WKP01G |
| Chip Breaker | FP5 |
| Width (mm - 2 Decimals) | 16.50 |
| ANSI Size Code | 332 |
| ISO Size Code | 160408 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 16 |
| Country of Origin | Germany |
