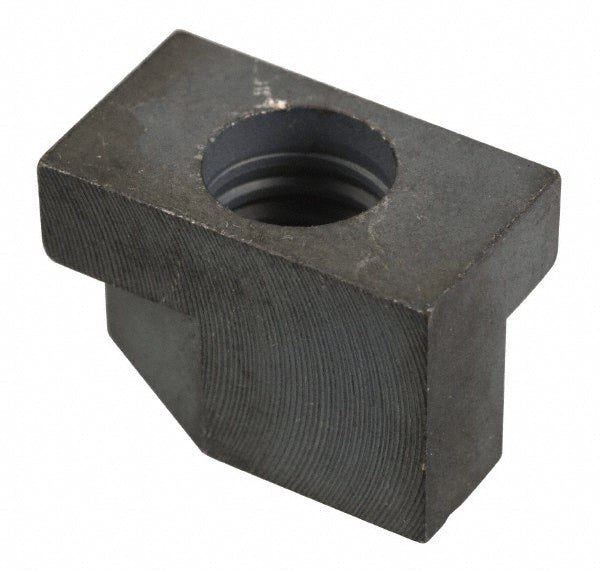

1/2-13 Blind Tapped Quarter Turn T Slot Nut
Item #: 06949580
Brand: TE-CO
Model #: 41453
Product Specifications
| Nut Type | Quarter Turn T-Slot |
| Tap Type | Blind |
| Thread Size | 1/2-13 |
| Material | Steel |
| Slot Width (Decimal Inch) | 0.6250 |
| Base Width (Inch) | 5/8 |
| Base Height (Decimal Inch) | 0.3330 |
| Overall Height (Inch) | 5/8 |
| Overall Length (Inch) | 1-1/4 |
| Overall Length (Decimal Inch) | 1.2500 |
| Thread Direction | Right Hand |
| Material Grade | C1018 |
| Thread Standard | UNC |
| For Table Slot Size (mm) | 16.00 |
| System Of Measurement | Inch |
| Finish Coating | Black Oxide |
| UNSPSC Code | 31161733 |
| Nut Type | Quarter Turn T-Slot |
| Tap Type | Blind |
| Thread Size | 1/2-13 |
| Material | Steel |
| Slot Width (Decimal Inch) | 0.6250 |
| Base Width (Inch) | 5/8 |
| Base Height (Decimal Inch) | 0.3330 |
| Overall Height (Inch) | 5/8 |
| Overall Length (Inch) | 1-1/4 |
| Overall Length (Decimal Inch) | 1.2500 |
| Thread Direction | Right Hand |
| Material Grade | C1018 |
| Thread Standard | UNC |
| For Table Slot Size (mm) | 16.00 |
| System Of Measurement | Inch |
| Finish Coating | Black Oxide |
| UNSPSC Code | 31161733 |
| MSC Part # | 06949580 |
| Mfr Part # | 41453 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
