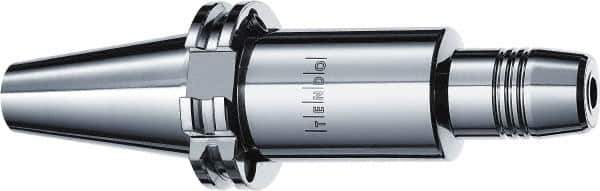

Schunk - CAT50 Taper Shank, 3/4" Hole Diam, Hydraulic Tool Holder/Chuck - 42mm Nose Diam, 152.4mm Projection, 46.5mm Clamp Depth, 25,000 RPM, Through Coolant
Item #: 75265454
Brand: Schunk
Model #: 204675
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | CAT50 |
| Hole Diameter (Inch) | 3/4 |
| Hole Diameter (Decimal Inch) | 0.7500 |
| Hole Diameter (mm) | 19.05 |
| Nose Diameter (Decimal Inch) | 1.6535 |
| Nose Diameter (mm) | 42.00 |
| Projection (Decimal Inch) | 6.0000 |
| Projection (mm) | 152.40 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 46.50 |
| Balanced to (RPM) | 25000 |
| TIR (mm) | 0.003 |
