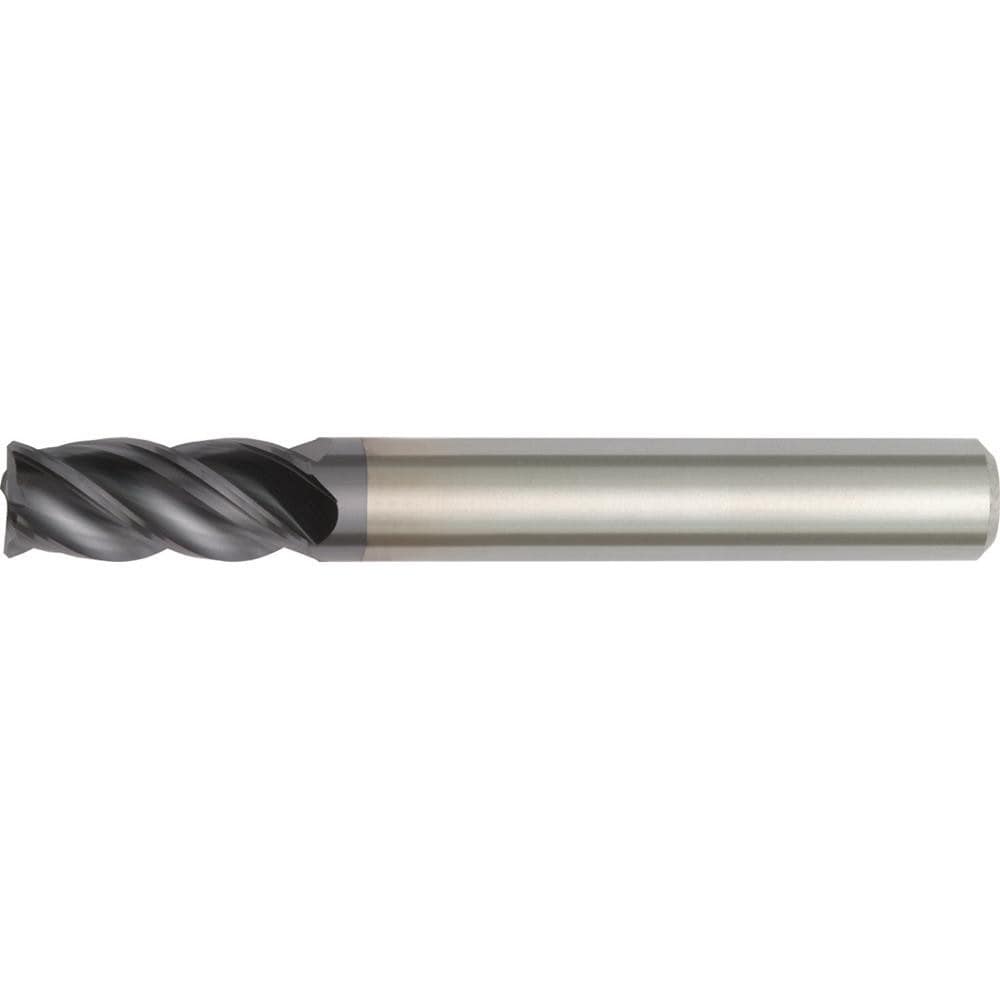

Square End Mill: 1/2" Dia, 2" LOC, 4 Flute, Solid Carbide
Item #: 63864623
Brand: Widia
Model #: 2837501
Product Specifications
| Mill Diameter (Decimal Inch) | 0.5000 |
| Mill Diameter (Inch) | 1/2 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 2.0000 |
| Length of Cut (Inch) | 2 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Overall Length (Decimal Inch) | 4.0000 |
| Overall Length (Inch) | 4 |
| Single Or Double End | Single |
| Coating/Finish Family | TiAlN |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 38 |
| Primary Workpiece Material | High-Temp Alloy; Stainless Steel; Cast Iron; Steel; Hardened Materials |
| Primary Workpiece Material Code | P; S; H; K; M |
| Secondary Workpiece Material | High-Temp Alloy |
| Secondary Workpiece Material Code | S |
| Coating/Finish | TiAlN-LW |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Helical |
| Shank Type | Weldon Flat |
| Material Grade | TiAlN-LW |
| Length Type | Regular |
| Neck Length (Decimal Inch) | 2.0000 |
| Neck Diameter (Decimal Inch) | 0.5000 |
| Reach Length (Inch) | 2 |
| Reach Length (Decimal Inch) | 2.0000 |
| Series | 4V05 |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| Mill Diameter (Inch) | 1/2 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 2.0000 |
| Length of Cut (Inch) | 2 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Overall Length (Decimal Inch) | 4.0000 |
| Overall Length (Inch) | 4 |
| Single Or Double End | Single |
| Coating/Finish Family | TiAlN |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 38 |
| Primary Workpiece Material | High-Temp Alloy; Stainless Steel; Cast Iron; Steel; Hardened Materials |
| Primary Workpiece Material Code | P; S; H; K; M |
| Secondary Workpiece Material | High-Temp Alloy |
| Secondary Workpiece Material Code | S |
| Coating/Finish | TiAlN-LW |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Helical |
| Shank Type | Weldon Flat |
| Material Grade | TiAlN-LW |
| Length Type | Regular |
| Neck Length (Decimal Inch) | 2.0000 |
| Neck Diameter (Decimal Inch) | 0.5000 |
| Reach Length (Inch) | 2 |
| Reach Length (Decimal Inch) | 2.0000 |
| Series | 4V05 |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
| MSC Part # | 63864623 |
| Mfr Part # | 2837501 |
| Country of Origin Country of Origin is subject to change | VARIOUS |
