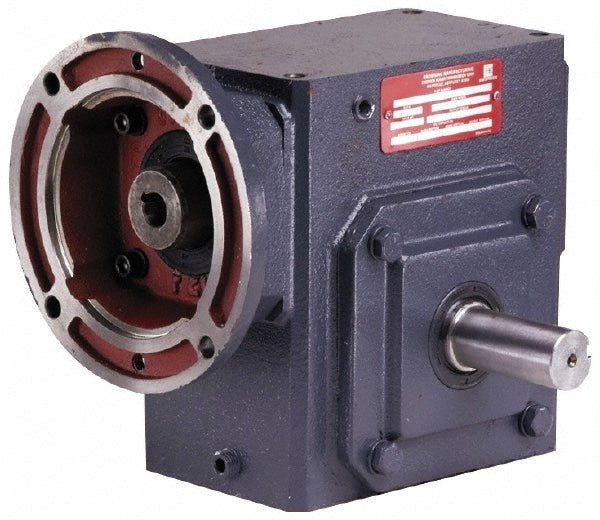

Speed Reducer: 2 hp Max Input
Item #: 08435562
Brand: Morse
Model #: XH1174
Product Specifications
| Centerline Distance | 3.0000 |
| Shaft Type | Double |
| Ratio | 15:1 |
| Maximum Input Horsepower | 2.00 |
| Nema/Iec Frame Size | 140TC NEMA |
| Minimum Torque (In/Lb) | 481.0 |
| Maximum Torque (In/Lb.) | 962.0 |
| Bore Diameter (Decimal Inch) | 0.8750 |
| Shaft Diameter (Decimal Inch) | 1.2500 |
| Minimum Input Horsepower | 1.00 |
| Output RPM at 1750 Input | 117.0 |
| Torque Output (In/Lb) with 1-1/2 Horsepower Motor @ 1750 | 721 |
| Torque Output (In/Lb) with 2 Horsepower Motor @ 1750 | 962 |
| Torque Output (In/Lb) with 1 Horsepower Motor @ 1750 | 481 |
| Height (Decimal Inch) | 8.8800 |
| Length (Decimal Inch - 4 Decimals) | 8.5000 |
| Width (Decimal Inch - 4 Decimals) | 5.5000 |
| UNSPSC Code | 26111500 |
