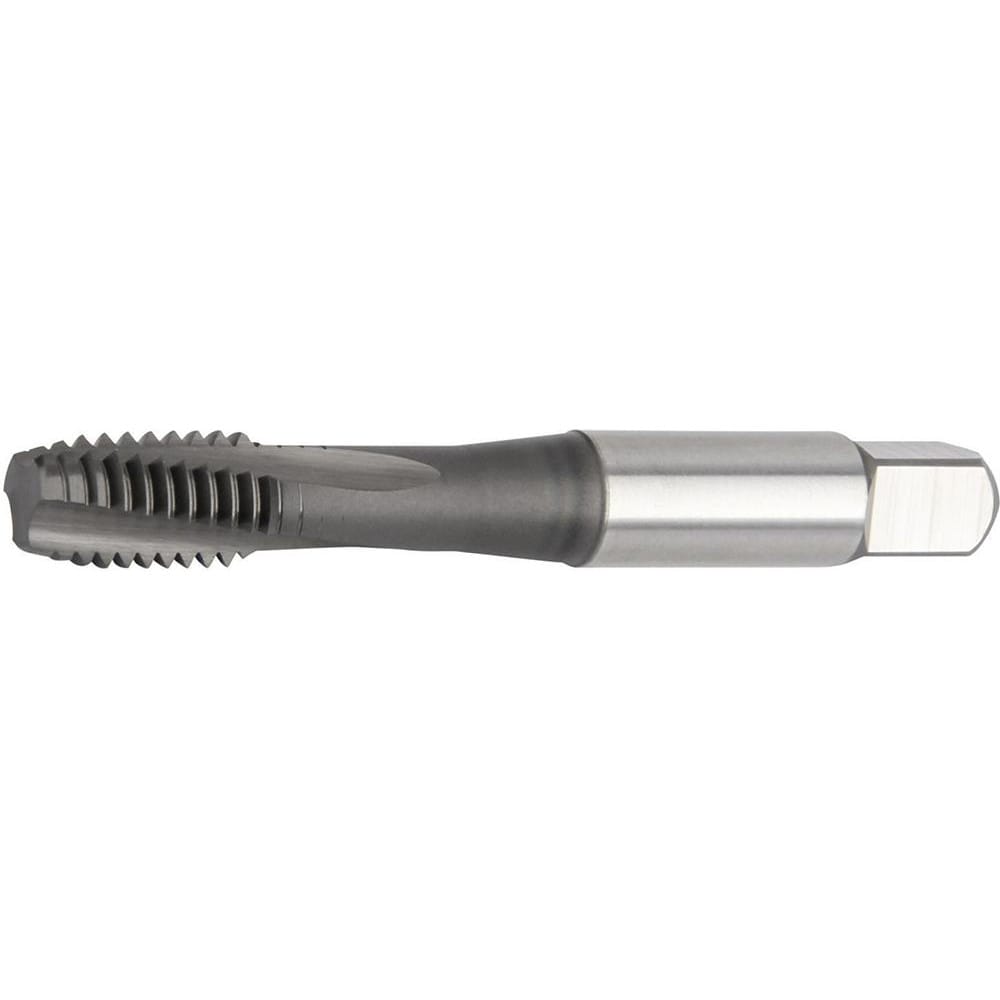

Brand: Widia / Part #: 5565231
Item #: 97422141
Brand: Widia
Model #: 5565231
Product Specifications
| Thread Size (mm) | M8x1.25 |
| Chamfer | Modified Bottoming |
| Thread Limit | D5 |
| Class Of Fit | 6H |
| Number Of Flutes | 3 |
| Material | Powdered Metal |
| Threads per Inch | 20 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | Nitride |
| Thread Depth (mm) | 28.50 |
| Coolant Through | No |
| Thread Length (mm) | 12.10 |
| Overall Length (mm) | 68.7000 |
| Thread Pitch (mm) | 1.25 |
| Thread Standard | Metric |
| Material Grade | WS30MG |
| Shank Diameter (mm) | 8.0800 |
| Square Length (mm) | 9.50 |
| Square Size (mm) | 5.99 |
| Material Application | High-Temperature Alloy |
| Series | GT-Ti |
