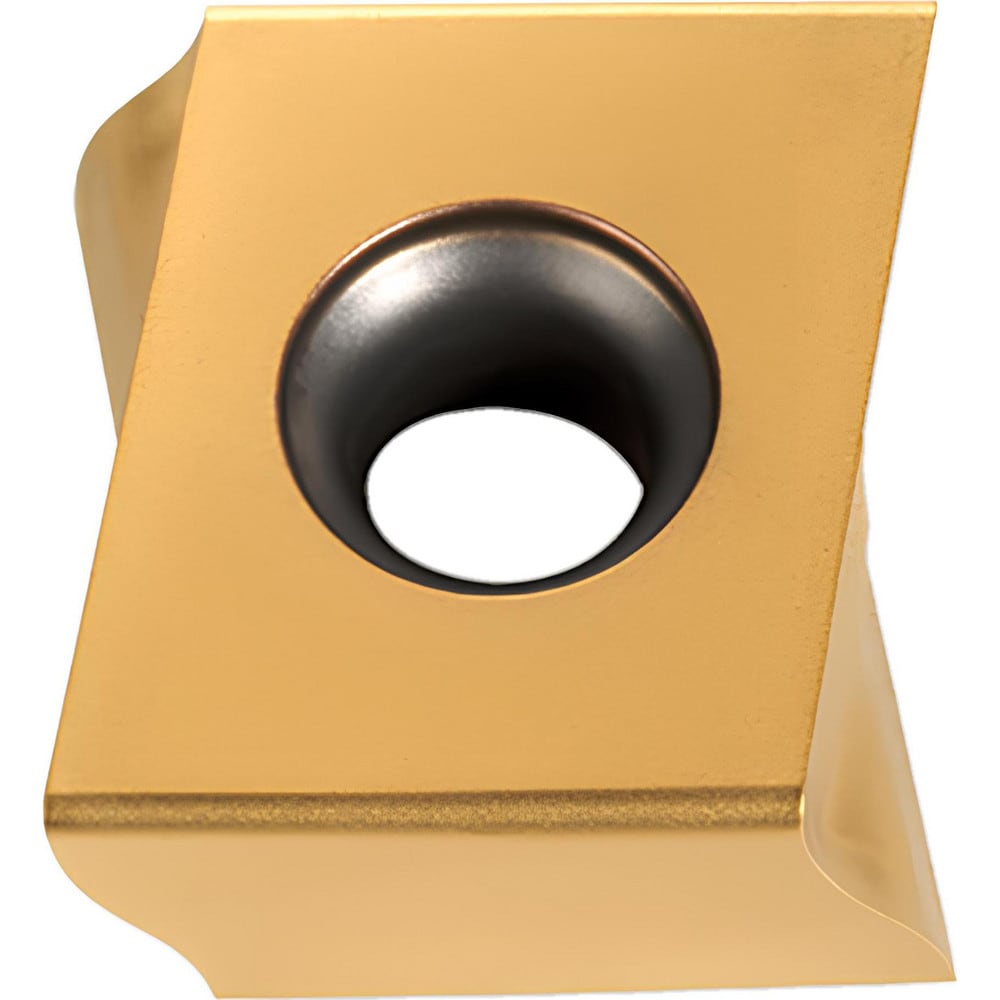

Brand: Ingersoll Cutting Tools / Part #: 5811657
Item #: 67316919
Brand: Ingersoll Cutting Tools
Model #: 5811657
Product Specifications
| Insert Style | DPM |
| Insert Size Code | 434 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2015 |
| Inscribed Circle (mm) | 14.00 |
| Insert Hand | Right Hand |
| Series | DPM |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.7090 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Parallelogram |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Ansi Code | DPM434R060 J |
| Rake Angle | 11.000 |
| Manufacturers Catalog Number | DPM434R060 J IN2015 |
| Cutter Series Compatibility | SJ6N |
| Chip Breaker | None |
| Cutting Direction | Right Hand |
| Shape | Parallelogram |
| Length of Cut (mm) | 18.0100 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiAlN |
| Width (Mm - 2 Decimals) | 14.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.3000 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.7090 |
