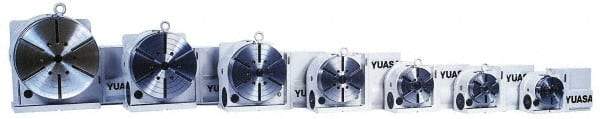

Yuasa - 1 Spindle, 100 Max RPM, 5.12" Table Diam, 0.4 hp, Horizontal & Vertical CNC Rotary Indexing Table - 30 kg (66 Lb) Max Horiz Load, 104.9mm Centerline Height
Item #: 74515917
Brand: Yuasa
Model #: DMNC-130
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Indexer Type | Rotary Table |
| Number of Spindles | 1 |
| Maximum RPM | 100 |
| Table Diameter (Decimal Inch) | 5.1200 |
| Setting Position | Horizontal; Vertical |
| Maximum Horizontal Load Capacity (Lb.) | 66 |
| Maximum Horizontal Load Capacity (kg) | 30 |
| Maximum Vertical Load Capacity (Lb.) | 33 |
| Maximum Vertical Load Capacity (kg) | 15 |
| Sub Table Outside Diameter (mm) | 130.05 |
| Sub Table Outside Diameter (Decimal Inch) | 5.1200 |
| Centerline Height (mm) | 104.90 |
| Centerline Height (Decimal Inch) | 4.1300 |
| Through Hole Size (mm) | 36.58 |
| Through Hole Size (Decimal Inch) | 1.4400 |
| Table Torque (Ft/Lb) | 90.00 |
| Table Torque (kg-m) | 12.44 |
| Pneumatic Brake Torque (Ft/Lb) | 50 |
| Pneumatic Brake Torque (kg-m) | 6.90 |
| Hydraulic Brake Torque (Ft/Lb) | 108 |
| Hydraulic Brake Torque (kg-m) | 15 |
| Resolution (Decimal Inch) | 0.0010 |
| Positioning Accuracy (sec.) | 10.00 |
| Repeatability (sec.) | 2.00 |
| Bore Inside Diameter (mm) | 29.97 |
| Bore Inside Diameter (Decimal Inch) | 1.1800 |
| Gear Ratio | 45:1 |
| Spindle Runout (mm) | 0.15 |
| Spindle Runout (Decimal Inch) | 0.006000 |
| Number of T-Slots | 4 |
| Motor Type | AC Servo |
| Voltage | 105 to 240 |
| Horsepower (HP) | 0.40 |
| Includes | Locating Keys; Operators' Manual; Power Supply; Remote Cable; T-Slotted Face Plate; UDNC-M1 Controller; Warranty Card |
