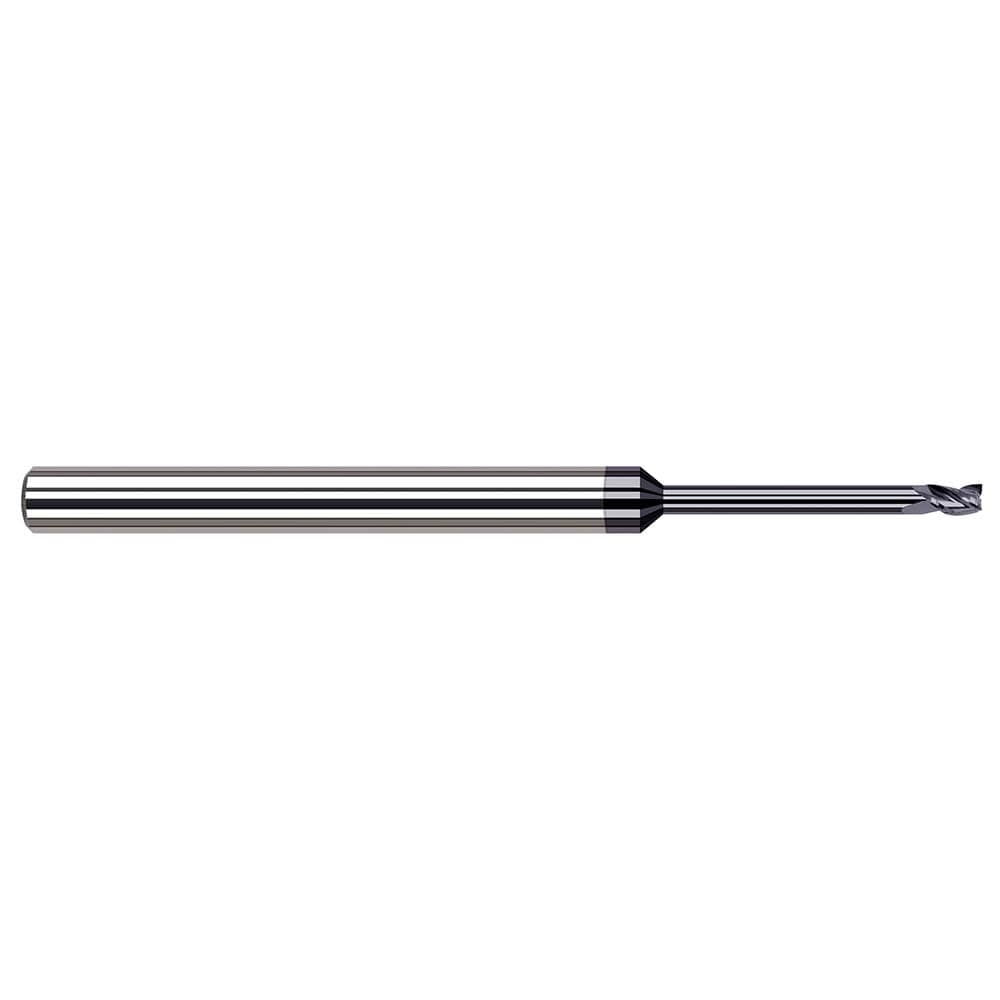

Square End Mill: 3.00 mm Dia, 4.50 mm LOC, 3 Flute, Solid Carbide
Item #: 55786867
Brand: Harvey Tool
Model #: 982205-C3
Product Specifications
| Mill Diameter (mm) | 3.00 |
| Mill Diameter (Decimal Inch) | 0.1180 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.1770 |
| Length of Cut (mm) | 4.50 |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 2.5000 |
| Overall Length (Inch) | 2-1/2 |
| Single Or Double End | Single |
| Coating/Finish Family | AlTiN |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | Yes |
| Coolant Through | No |
| Helix Angle | 30 |
| Primary Workpiece Material | Aluminum & Non-Ferrous; Stainless Steel; Cast Iron; CFRP Materials; Steel |
| Primary Workpiece Material Code | P; C; K; M; N |
| Coating/Finish | AlTiN |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Reach Length (Inch) | 1-3/16 |
| Reach Length (Decimal Inch) | 1.1870 |
| Length Of Cut Range (Decimal Inch) | 0.1000 - 0.2000 |
| Series | Miniature End Mills - Square - Long Reach, Stub Flute |
| System Of Measurement | Decimal Inch |
| UNSPSC Code | 27112803 |
| Mill Diameter (mm) | 3.00 |
| Mill Diameter (Decimal Inch) | 0.1180 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.1770 |
| Length of Cut (mm) | 4.50 |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 2.5000 |
| Overall Length (Inch) | 2-1/2 |
| Single Or Double End | Single |
| Coating/Finish Family | AlTiN |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | Yes |
| Coolant Through | No |
| Helix Angle | 30 |
| Primary Workpiece Material | Aluminum & Non-Ferrous; Stainless Steel; Cast Iron; CFRP Materials; Steel |
| Primary Workpiece Material Code | P; C; K; M; N |
| Coating/Finish | AlTiN |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Reach Length (Inch) | 1-3/16 |
| Reach Length (Decimal Inch) | 1.1870 |
| Length Of Cut Range (Decimal Inch) | 0.1000 - 0.2000 |
| Series | Miniature End Mills - Square - Long Reach, Stub Flute |
| System Of Measurement | Decimal Inch |
| UNSPSC Code | 27112803 |
| MSC Part # | 55786867 |
| Mfr Part # | 982205-C3 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
