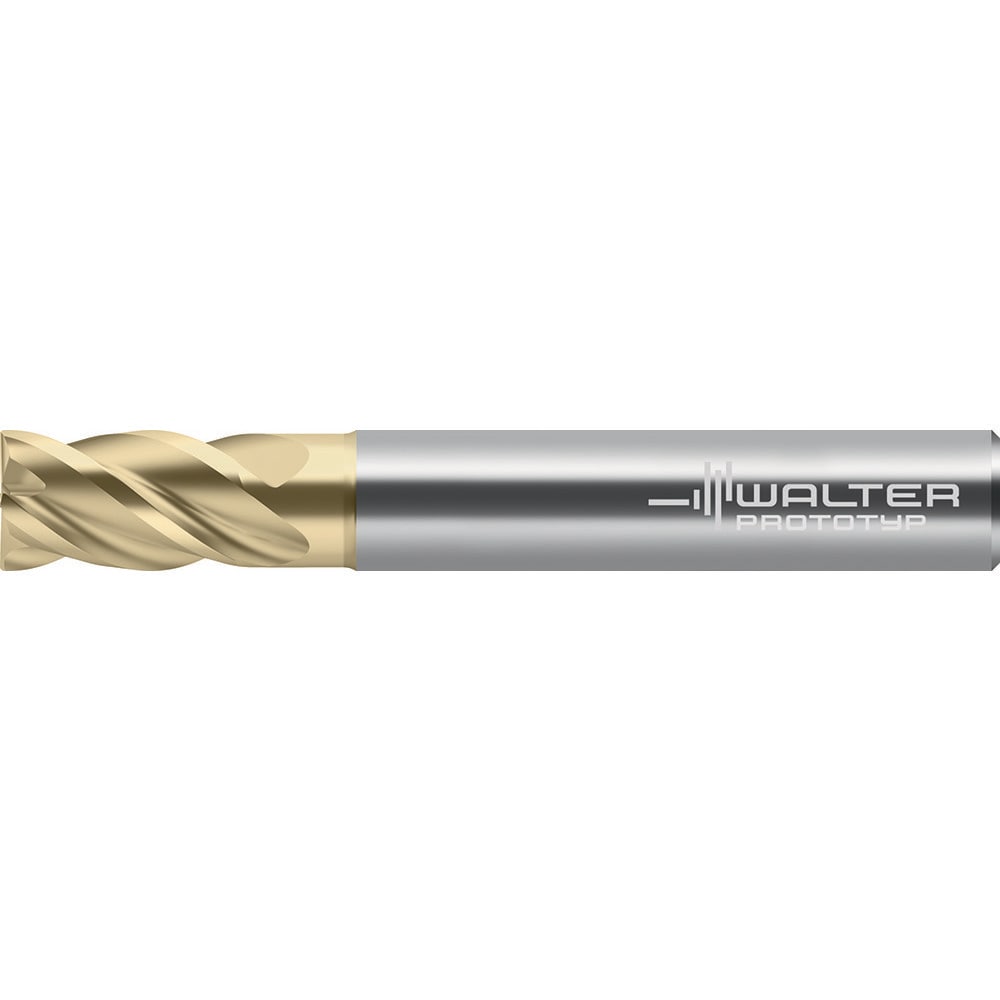

Square End Mill: 0.6250" Dia, 1.5185" LOC, 4 Flute, Solid Carbide
Item #: 53445334
Brand: Walter-Prototyp
Model #: 8199020
Product Specifications
| Mill Diameter (Decimal Inch) | 0.6250 |
| Mill Diameter (Inch) | 5/8 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 1.5185 |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Overall Length (Decimal Inch) | 3.5000 |
| Overall Length (Inch) | 3-1/2 |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Helix Angle | 39 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Cast Iron; Super Alloys & Titanium |
| Secondary Workpiece Material Code | S; K; M |
| Coating/Finish | TiAlN/ZrN |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Cylindrical |
| Material Grade | Solid Carbide |
| Length Type | Standard |
| Neck Diameter (Decimal Inch) | 0.5937 |
| Reach Length (Decimal Inch) | 1.5185 |
| Shank Diameter Tolerance | h5 |
| Series | MD340 |
| UNSPSC Code | 27112803 |
