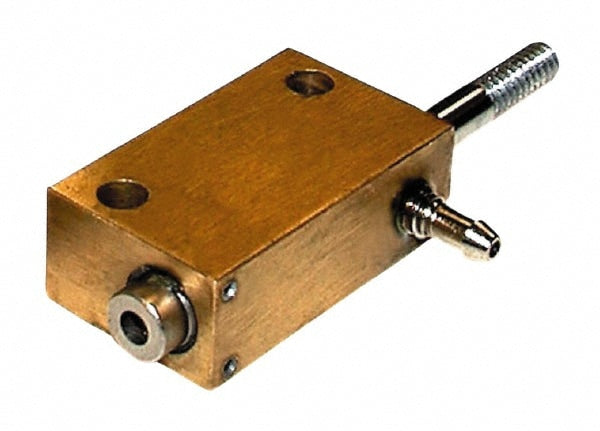

1/2" Stroke x 1/2" Bore Single Acting Air Cylinder
Item #: 48498802
Brand: Mead
Model #: MF500X0.50SRRO
Product Specifications
| Type | Single Acting |
| Bore Size (Inch) | 1/2 |
| Rod Diameter (Decimal Inch) | 0.250 |
| Rod Diameter (Inch) | 1/4 |
| Stroke Length (Inch) | 1/2 |
| Port Size | 10-32 |
| Port Type | UNF |
| Length (Decimal Inch) | 2.055 |
| Maximum Working Pressure (psi) | 125 |
| Rod Thread Size | 1/4-28 |
| Style | Thru-Hole |
| UNSPSC Code | 27131701 |
