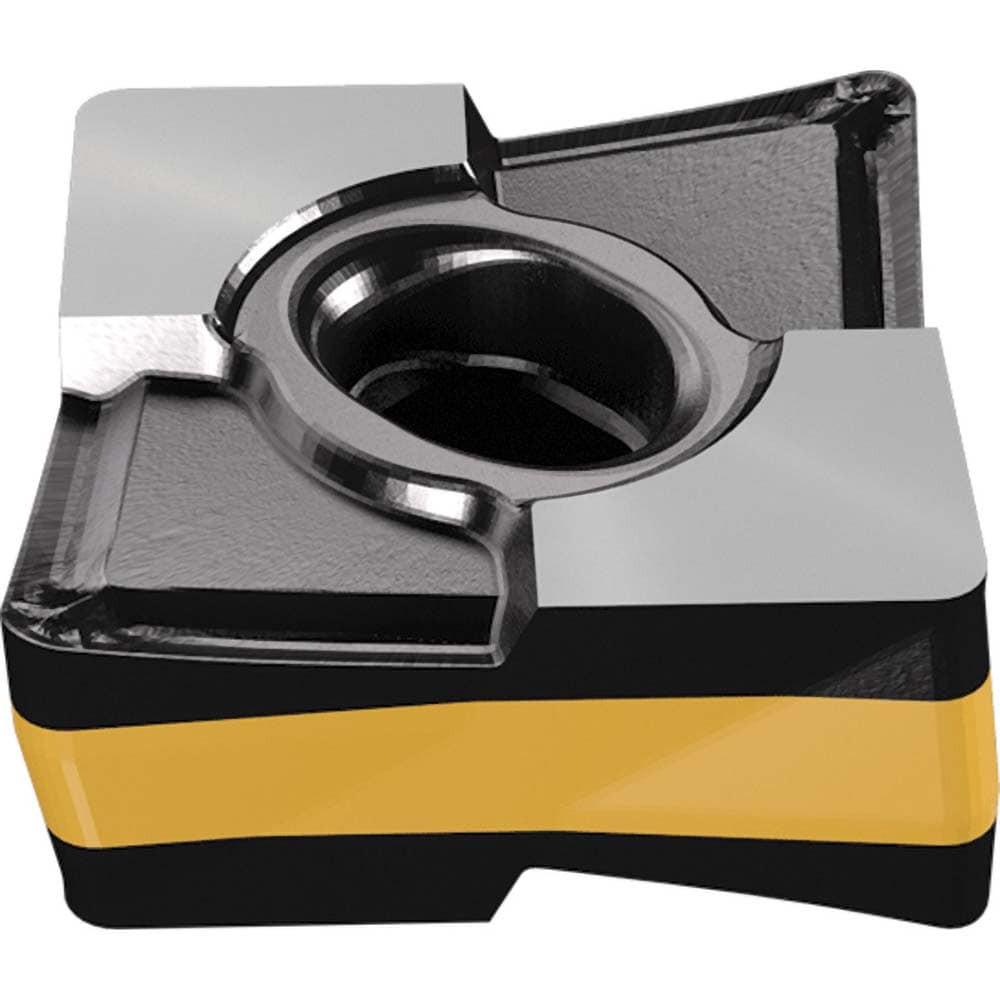

Turning Insert: CXMG 12T508-M3P IC8250, Carbide
Item #: 16420135
Brand: Iscar
Model #: 3346717
Product Specifications
| ANSI Insert Code | CXMG12T508 |
| ISO Insert Code | CXMG12T508 |
| Insert Style | CXMG |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 80 |
| Manufacturer Grade | IC8250 |
| Coating/Finish | TiCN; TiN; AI2O3 |
| Insert Thickness | 5.79 |
| Insert Thickness (Decimal Inch) | 0.2280 |
| Series | Logiq4turn |
| Inscribed Circle (Decimal Inch) | 0.4920 |
| Insert Material | Carbide |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Chip Breaker Operation | Medium Machining; Roughing |
| Grade Characteristics | Steel (P) - High Wear-Resistance to High Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Insert Shape Code | C |
| Maximum Depth of Cut (mm) | 4.20 |
| Maximum Depth of Cut (Decimal Inch) | 0.1654 |
| Clearance Code | X |
| Tolerance Code | M |
| Coating Process | CVD |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.5410 |
| Insert Length (mm) | 13.80 |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Chip Breaker | M3P |
| ANSI Size Code | 12T508 |
| ISO Size Code | 12T508 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 508 |
