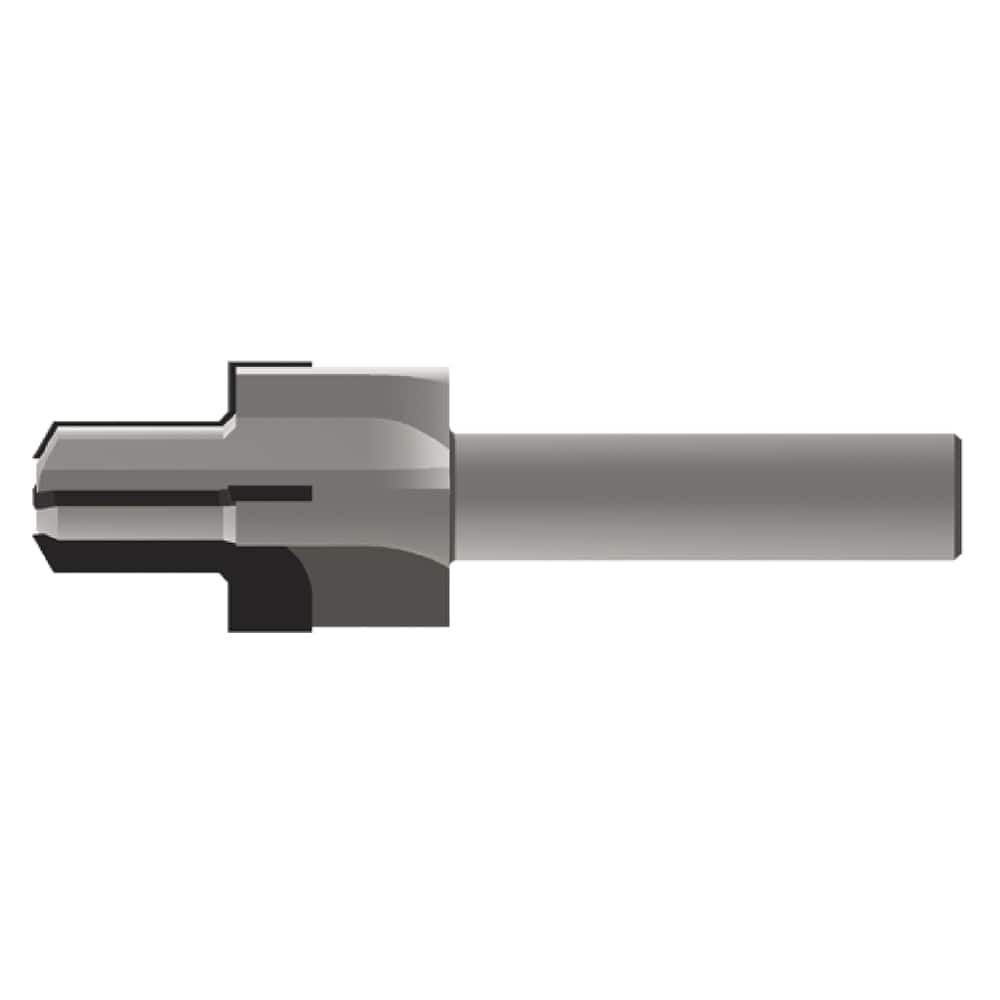

Porting Tool: 1.25″ Spotface Dia, Reamer 0.741″ Min Pilot Dia, 0.801″ Pilot Length, 4 Flutes
Item #: 74112814
Brand: Scientific Cutting Tools
Model #: PT-BSPP-1/2A
Product Specifications
| Spotface Diameter (Decimal Inch) | 1.2500 |
| Pilot Type | Reamer |
| Minimum Pilot Diameter (Decimal Inch) | 0.7410 |
| Pilot Length | 0.8010 |
| Overall Length (Decimal Inch) | 3.6200 |
| Number Of Flutes | 4 |
| Identification Groove | No |
| Seal Angle | 45 |
| Thread Type | BSPP |
| Flute Type | Straight |
| Shank Diameter (Decimal Inch) | 3/4 |
| Shank Length (Decimal Inch) | 2.0000 |
| Maximum Pilot Diameter (Decimal Inch) | 0.8400 |
| Head Length (Decimal Inch) | 1.6200 |
| Coating/Finish | AlTiN+ |
