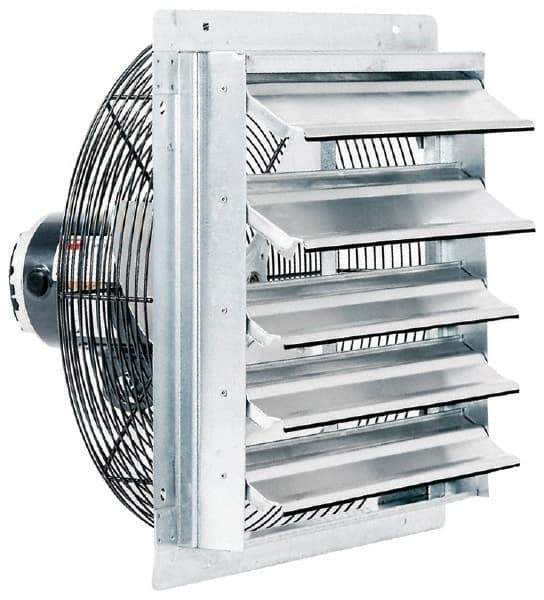

Fantech - 36" Blade, 1/2 hp, 8,225 Max CFM, Single Phase Vertical & Horizontal Mounting Direct Drive Fan - 5.6 Amps, 115 Volts, 1 Speed
Item #: 74077660
Brand: Fantech
Model #: 2SHE36D1
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Blade Size (Inch) | 36 |
| Drive Type | Direct |
| Type of Enclosure | TEFC |
| CFM | 8225 |
| Amperage Rating | 5.6 |
| Horsepower | 1/2 |
| Voltage | 115 |
| RPM | 825 |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Sones | 14.7 |
| Depth (Inch) | 13-1/8 |
| Mount | Vertical, Horizontal |
| Shutter Opening Square Size (Decimal Inch) | 37 |
| Material | Galvanized Steel |
| Phase | 1 |
