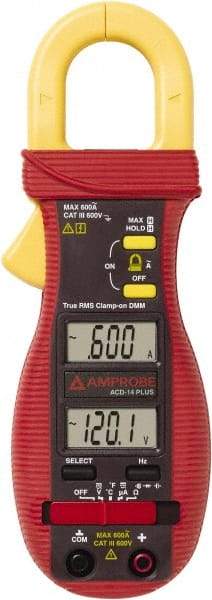

Amprobe - 3086905, CAT III, Digital True RMS HVAC Clamp Meter with 1.0236" Clamp On Jaws - 600 VAC/VDC, 600 AC Amps, Measures Voltage, Continuity, Current, Frequency, microAmps, Resistance, Temperature
Item #: 73976243
Brand: Amprobe
Model #: 3086905
Exact Tooling IR#: 04
Features and Benefits
Clamp on meters are designed with jaws that open and close to fit around a conductor to measure AC or DC currents.
| Product Specifications | |
|---|---|
| Clamp Meter Type | HVAC |
| Measures | Voltage; Continuity; Current; Frequency; microAmps; Resistance; Temperature |
| Jaw Style | Clamp On |
| Jaw Capacity (Decimal Inch) | 1.0236 |
| CAT Rating | CAT III |
| Maximum DC Voltage | 600 |
| Maximum AC Voltage | 600 |
| Maximum AC Current (A) | 600 |
| Maximum Resistance (Megohms) | 40 |
| Temp Measurement Range (C) | -20 - 537 |
| Temp Measurement Range (F) | -4 - 999 |
| Temp Measurement Range w/Included Probe (F) | -4 - 500 |
| Temp Measurement Range w/Included Probe (C) | -20 - 260 |
| Maxium Capacitance (mF) | 3.000 |
| Display Type | Digital |
| AC Wave Measurement | True RMS |
| Additional Functions | Dual Display; AC/DC Microamps |
| Includes | Test Leads; Case; Manual |
| Frequency | 100kHz |
| Counts | 4000 |
| Battery Type | CR2032 |
| Standards Met | IEC61010; IEC60529 |
| PSC Code | 6625 |
