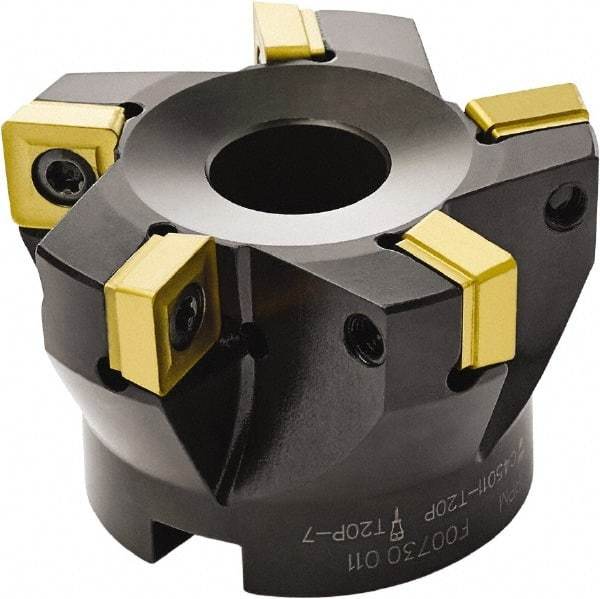

Seco - 100mm Cut Diam, 32mm Arbor Hole, 11mm Max Depth of Cut, 87° Indexable Chamfer & Angle Face Mill - 7 Inserts, SC.. 1206 Insert, Right Hand Cut, Through Coolant, Series R220.79
Item #: 73857401
Brand: Seco
Model #: 30335
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 100.00 |
| Cutting Diameter (Decimal Inch) | 3.9370 |
| Arbor Hole Diameter (mm) | 32.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.2598 |
| Lead Angle | 87 |
| Overall Height (Decimal Inch) | 1.9685 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | SC.. 1206 |
| Series | R220.79 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 11.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4331 |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw |
| Cutting Rake Angle | 0 |
| Rake | Neutral |
| Hub Diameter (Decimal Inch) | 3.0315 |
| Hub Diameter (mm) | 77.00 |
| Keyway Width (mm) | 14.40 |
| Keyway Width (Decimal Inch) | 0.5669 |
| Maximum RPM | 7000 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | SCET 120612T-M11; SCET 120612T-M14; SCET 120612T-MD15; SCET 120612T-ME10; SCET 120630T-M14; SCET 120630T-MD16; SCET 120631T-M11; SCET 120631T-ME10; SCEX 120612-E08; SCEX 120660T-M14; SCMT 120612T-M14 |
