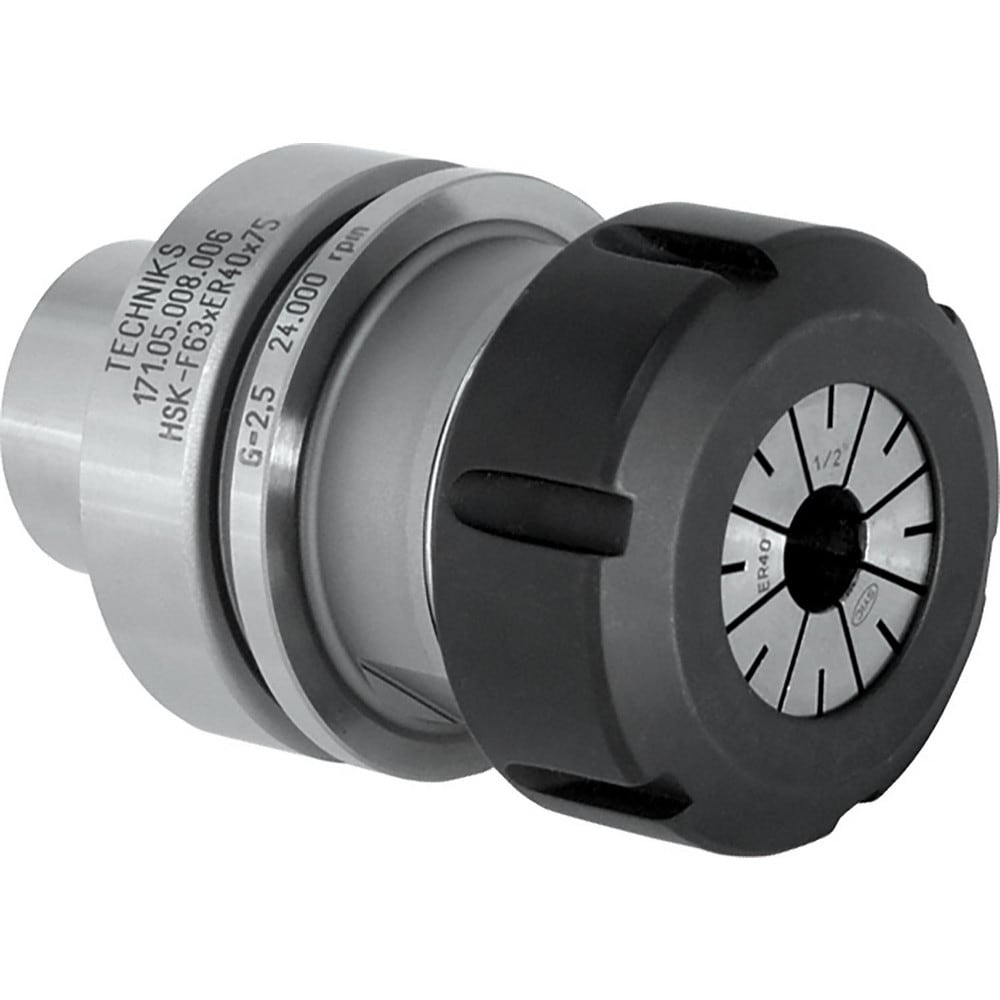

Collet Chuck: 0.5510 to 0.5510" Capacity, ER Collet, 2.5000" Shank Dia
Item #: 09536327
Brand: Techniks
Model #: 43.122.20.276
Product Specifications
| Collet System | ER |
| Collet Series | ER20 |
| Taper Size | CAT40 |
| Projection (Decimal Inch) | 2.7600 in |
| Through Coolant | No |
| Minimum Collet Capacity (Decimal Inch) | 0.5510 |
| Maximum Collet Capacity (Decimal Inch) | 0.5510 |
| Overall Length (Decimal Inch) | 5.45 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 2.5000 |
| Shank Diameter (Decimal Inch) | 2.5000 |
| Type | CAT40 |
| UNSPSC Code | 27112808 |
