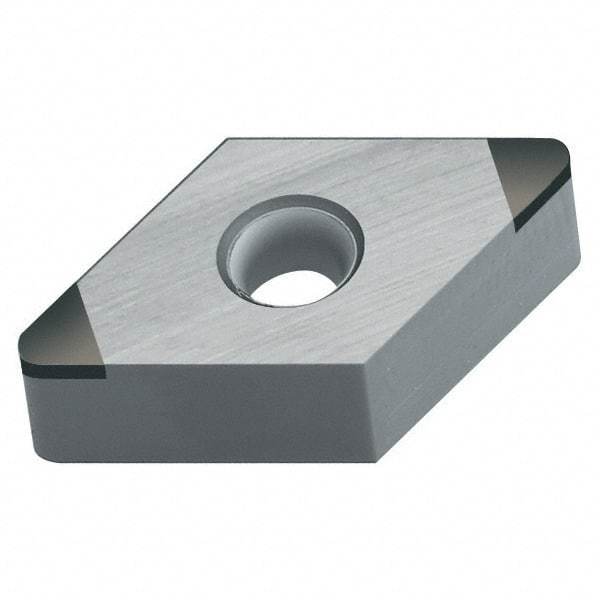

Walter - DNMA442 Grade WCB50 CBN Turning Insert - Uncoated, 55° Diamond, 1/2" Inscr Circle, 1/4" Thick, 1/32" Corner Radius
Item #: 73800377
Brand: Walter
Model #: 5202105
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | DNMA |
| Insert Size | 442 |
| Material | CBN |
| Length (mm) | 15.49 |
| Length (Decimal Inch) | 0.6100 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | WCB50 |
| Coating | Uncoated |
| Material Grade | H10/K10 |
| ISO Number | DNMA150608-2 |
| Rake | Negative |
| Relief Angle | 0 |
| Manufacturers Catalog Number | DNMA442-2 |
| Primary Workpiece Material | H |
| Secondary Workpiece Material | K |
| Included Angle | 55 |
| Series | Tiger-tec |
| Maximum Depth of Cut (mm) | 2.11 |
| Maximum Depth of Cut (Decimal Inch) | 0.0830 |
| Insert Holding Method | Pin & Clamp |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Diamond |
