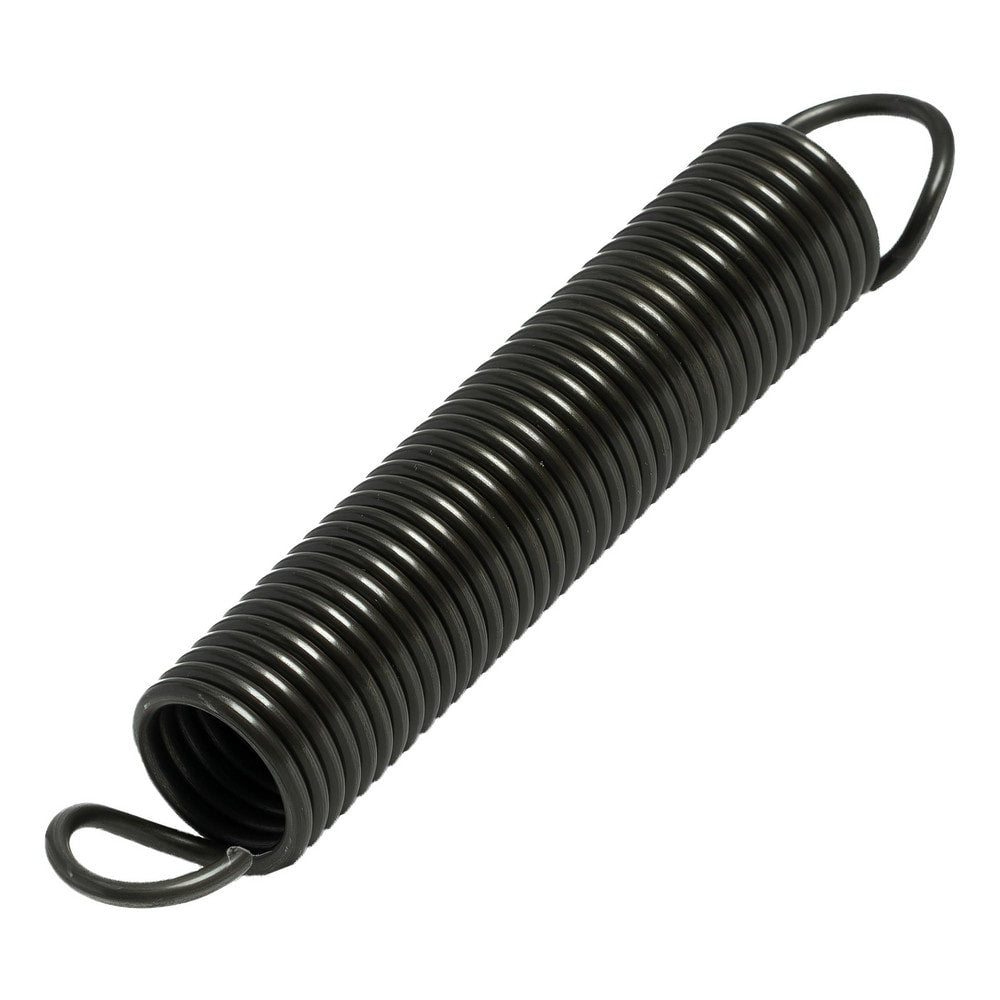

Extension Springs; End Type: Full Twist Loop; Outside Diameter (mm): 20.0000; Spring Rate: 0.4000; Material: Music Wire; Overall Length (Decimal Inch): 17.9020
Item #: 03372414
Brand: Associated Spring Raymond
Model #: MCEM2001800451M
Product Specifications
| End Type | Full Twist Loop |
| Outside Diameter (mm) | 20.0000 |
| Spring Rate | 0.4000 |
| Material | Music Wire |
| Overall Length (Decimal Inch) | 17.9020 |
| Initial Tension (N) | 10.17 |
| Maximum Extended Length (mm) | 1488.86 |
| Free Length (mm) | 451.000 |
| Inside Hook Length (Fractional Inch) | 17-3/4 |
| Standards | JIS G3522 SWP - A/B; EN 10270-1; ASTM A228 |
| Finish/Coating | Dry to Touch Oil |
| Wire Size (mm) | 1.80 |
| UNSPSC Code | 31161907 |
