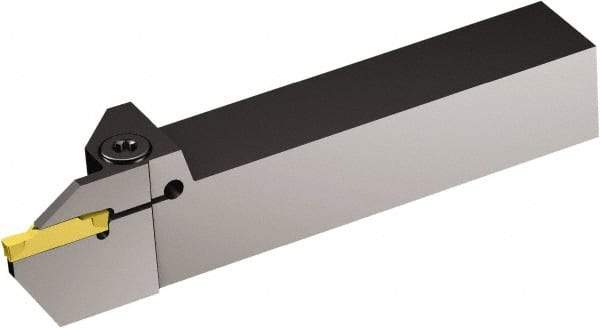

Sandvik Coromant - External Thread, 0.51" Max Depth of Cut, 3.96mm Min Groove Width, 5" OAL, Right Hand Indexable Grooving Cutoff Toolholder - 3/4" Shank Height x 3/4" Shank Width, N123H2-0400-CM Insert Style, RF123..B Toolholder Style, Series CoroCut 1-2
Item #: 73712812
Brand: Sandvik Coromant
Model #: 5740824
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 12.95 |
| Maximum Depth of Cut (Decimal Inch) | 0.5100 |
| Minimum Groove Width (Decimal Inch) | 0.1559 |
| Minimum Groove Width (mm) | 3.96 |
| Maximum Groove Width (mm) | 5.00 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 4.5000 |
| Overall Length (mm) | 114.30 |
| Series | CoroCut 1-2 |
| Toolholder Style | RF123..B |
| Insert Compatibility | N123H2-0400-CM |
| Shank Height (mm) | 19.05 |
| Shank Height (Inch) | 3/4 |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (mm) | 19.05 |
| Shank Width/Diameter (Inch) | 3/4 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.5000 |
| Head Height (mm) | 19.05 |
| Head Height (Decimal Inch) | 0.7500 |
| Head Length (mm) | 19.05 |
| Head Length (Decimal Inch) | 0.7500 |
| Shank Length (Decimal Inch) | 3.1620 |
| Shank Length (mm) | 80.31 |
| Manufacturers Catalog Number | RF123H051-12BM |
