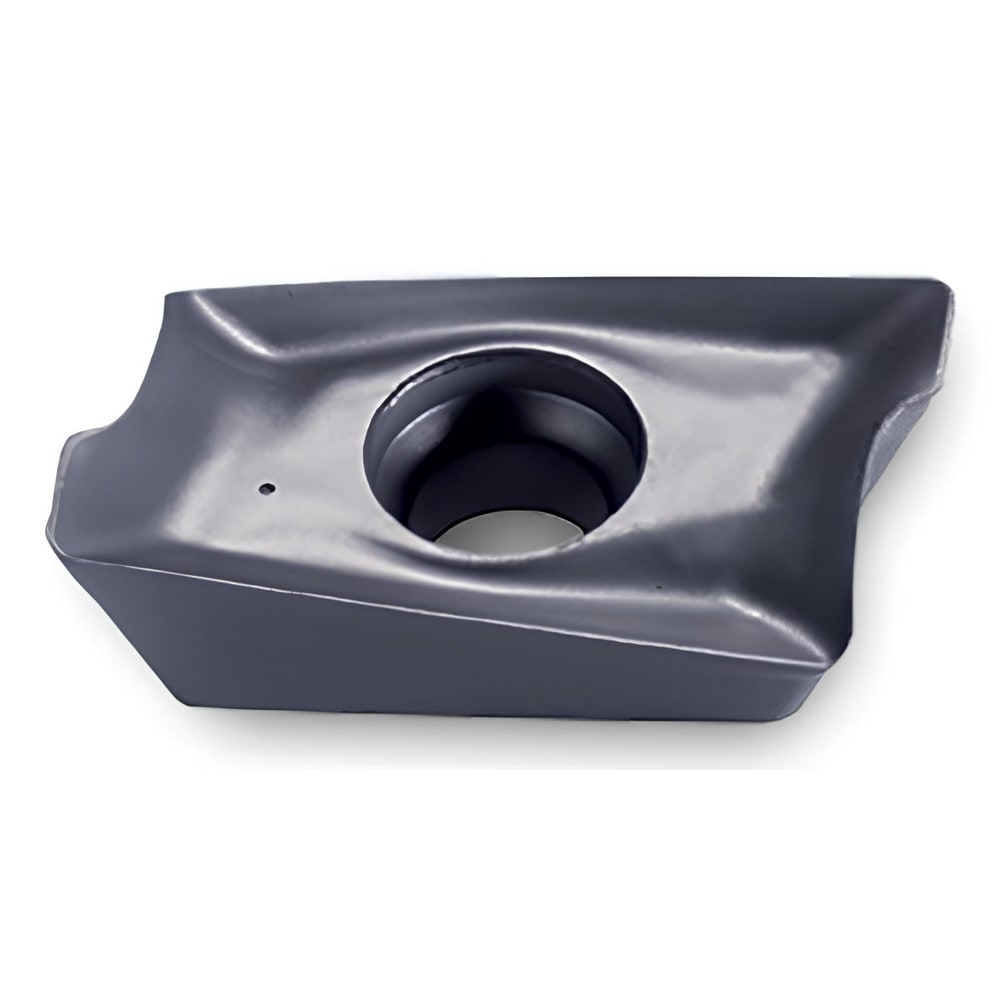

Brand: Ingersoll Cutting Tools / Part #: 5831071
Item #: 67327171
Brand: Ingersoll Cutting Tools
Model #: 5831071
Product Specifications
| Insert Style | AOMT |
| Insert Size Code | 180508 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2035 |
| Inscribed Circle (Decimal Inch) | 0.4240 |
| Corner Radius (Inch) | 1/32 |
| Insert Hand | Right Hand |
| Series | AOMT |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.6600 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Parallelogram |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium |
| Primary Workpiece Material Code | S; M |
| Ansi Code | AOMT180508R-HS |
| Manufacturers Catalog Number | AOMT180508R-HS IN2035 |
| Cutter Series Compatibility | 12J4E; 2J4E |
| Chip Breaker | HS |
| Cutting Direction | Right Hand |
| Shape | Parallelogram |
| Length of Cut (mm) | 16.7600 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiAlN |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.4240 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2320 |
| Multi-Use Tool | No |
| Length (Decimal Inch - 4 Decimals) | 0.7740 |
