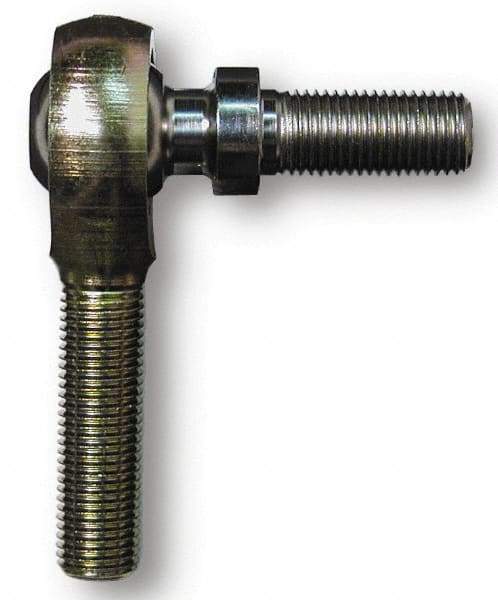

Alinabal - 5/16" ID, 7/8" Max OD, 2,800 Lb Max Static Cap, Spherical Rod End - 5/16-24 LH, 0.437" Shank Diam, 1-1/4" Shank Length, Steel with Molded Nyloy Raceway
Item #: 73204893
Brand: Alinabal
Model #: PMSL5GR
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Diameter (Decimal Inch) | 0.3125 |
| Maximum Outside Diameter (Inch) | 7/8 |
| Maximum Static Load Capacity (Pounds) | 2800.0 |
| Width (Decimal Inch) | 0.4370 |
| Thread Size | 5/16-24 |
| Material | Steel |
| Shank Diameter (Decimal Inch) | 0.4370 |
| Raceway Material | Molded Nyloy |
| Shank Length (Decimal Inch) | 1.2500 |
| Thread Direction | Left Hand |
