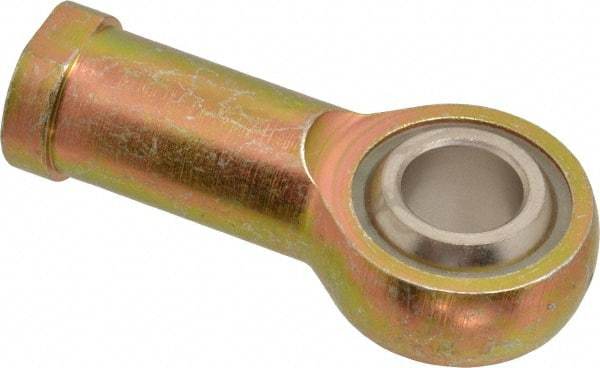

Alinabal - 3/4" ID, 1-3/4" Max OD, 9,000 Lb Max Static Cap, Spherical Rod End - 3/4-16 RH, 7/8" Shank Diam, 1-3/4" Shank Length, Steel with Molded Nyloy Raceway
Item #: 73204687
Brand: Alinabal
Model #: PF12G
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Diameter (Decimal Inch) | 0.7500 |
| Maximum Outside Diameter (Inch) | 1-3/4 |
| Maximum Outside Diameter (Inch) | 1-3/4 |
| Maximum Static Load Capacity (Pounds) | 9000.0 |
| Width (Decimal Inch) | 0.8750 |
| Thread Size | 3/4-16 |
| Material | Steel |
| Shank Diameter (Decimal Inch) | 0.8750 |
| Raceway Material | Molded Nyloy |
| Shank Length (Decimal Inch) | 1.7500 |
| Thread Direction | Right Hand |
