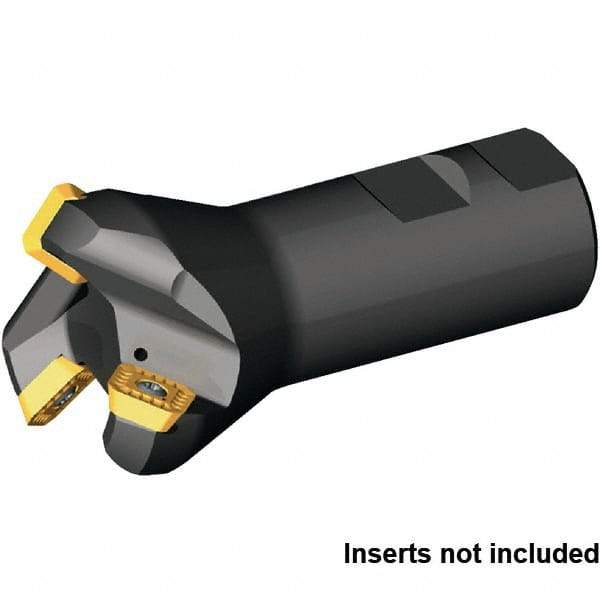

Kennametal - 45° Lead Angle, 2.515" Max Cut Diam, 1.969" Min Cut Diam, 0.26" Max Depth of Cut, Indexable Chamfer and Angle End Mill - 4 Inserts, SE..T 443AE..N Insert Style, 3.855" Overall Length, Straight Shank
Item #: 73006033
Brand: Kennametal
Model #: 1817942
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 1.9690 |
| Maximum Cutting Diameter (Decimal Inch) | 2.5150 |
| Shank Type | Weldon |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Lead Angle | 45 |
| Overall Length (Decimal Inch) | 3.8550 |
| Insert Style | SE..T 443AE..N |
| Maximum Depth of Cut (Decimal Inch) | 0.2600 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Toolholder Style | KISR |
| Number of Flutes | 4 |
| Head Length (Decimal Inch) | 1.5750 |
| Weldon Flat | Yes |
| Maximum RPM | 22500 |
