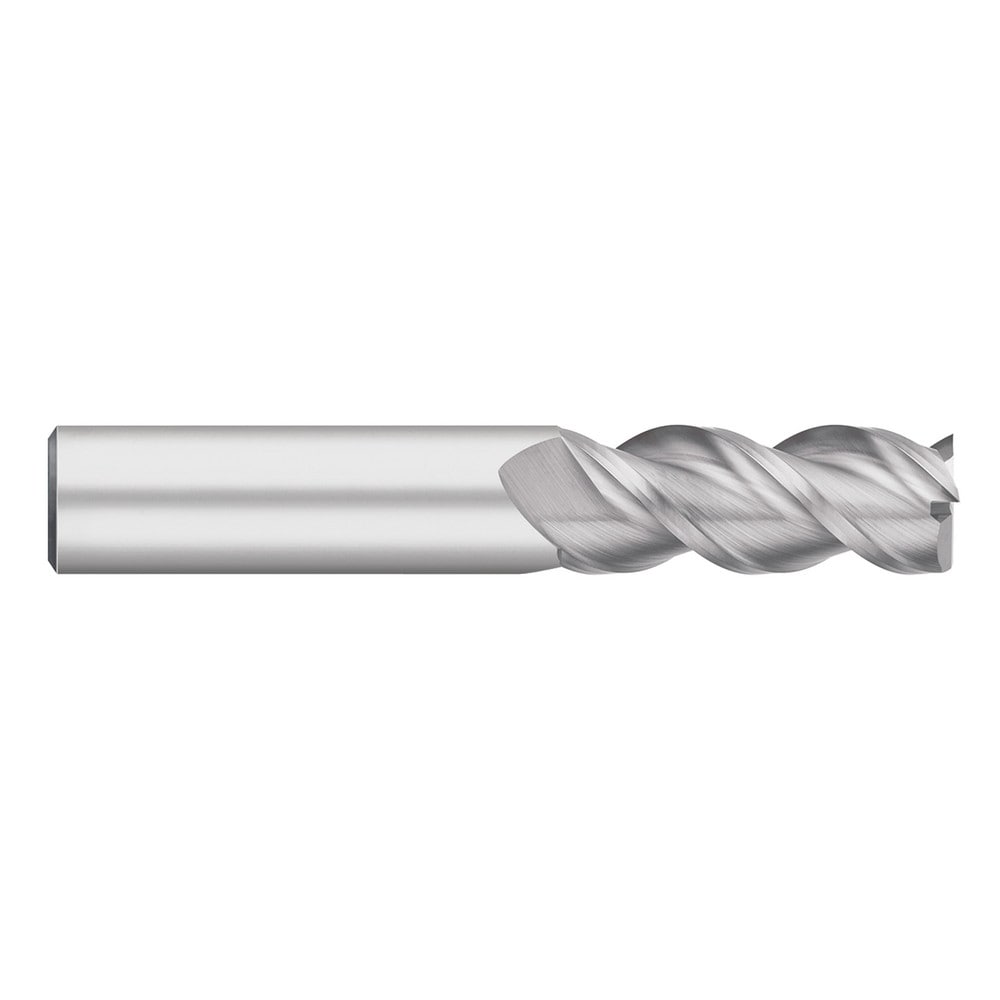

Square End Mill: 3/16" Dia, 5/8" LOC, 3 Flute, Solid Carbide
Item #: 33114620
Brand: Titan USA
Model #: TC62812
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1875 |
| Mill Diameter (Inch) | 3/16 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.6250 |
| Length of Cut (Inch) | 5/8 |
| Shank Diameter (Inch) | 3/16 |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Overall Length (Decimal Inch) | 2.0000 |
| Overall Length (Inch) | 2 |
| Single Or Double End | Single |
| Coating/Finish Family | Bright/Uncoated |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Left Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 45 |
| Primary Workpiece Material | Aluminum & Non-Ferrous |
| Primary Workpiece Material Code | N |
| Coating/Finish | Bright/Uncoated |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Straight |
| Material Grade | Solid Carbide |
| Series | General Purpose End Mills - Carbide - For Aluminum - 3 Flute - Square - 45 deg Helix |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
| Mill Diameter (Decimal Inch) | 0.1875 |
| Mill Diameter (Inch) | 3/16 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.6250 |
| Length of Cut (Inch) | 5/8 |
| Shank Diameter (Inch) | 3/16 |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Overall Length (Decimal Inch) | 2.0000 |
| Overall Length (Inch) | 2 |
| Single Or Double End | Single |
| Coating/Finish Family | Bright/Uncoated |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Left Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 45 |
| Primary Workpiece Material | Aluminum & Non-Ferrous |
| Primary Workpiece Material Code | N |
| Coating/Finish | Bright/Uncoated |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Straight |
| Material Grade | Solid Carbide |
| Series | General Purpose End Mills - Carbide - For Aluminum - 3 Flute - Square - 45 deg Helix |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
| MSC Part # | 33114620 |
| Mfr Part # | TC62812 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
