CNC Rotary Indexers; Indexer Type: Rotary Table; Number of Spindles: 2; Maximum RPM: 75 RPM; 75; Maximum Horizontal Load Capacity: 180 lb; 80 kg; Maximum Vertical Load Capacity: 40 kg; 90 lb; Setting Position: Vertical; Horizontal; Subtable Outside Diamet
Item #: 72850126

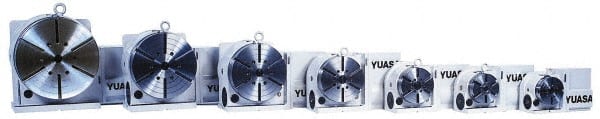

Brand: Yuasa
Model #: DMNC-171-2
Product Specifications
| Indexer Type | Rotary Table |
| Number of Spindles | 2 |
| Maximum RPM | 75 RPM; 75 |
| Maximum Horizontal Load Capacity | 180 lb; 80 kg |
| Maximum Vertical Load Capacity | 40 kg; 90 lb |
| Setting Position | Vertical; Horizontal |
| Subtable Outside Diameter | 6.69 in; 169.93 mm |
| Maximum Horizontal Load Capacity (Lb.) | 180 |
| Maximum Horizontal Load Capacity (kg) | 80 |
| Maximum Vertical Load Capacity (Lb.) | 90 |
| Maximum Vertical Load Capacity (kg) | 40 |
| Resolution | 8.0E-4 in |
| Positioning Accuracy | 10 s |
| Repeatability | 2 s |
| Bore Inside Diameter | 41.91 mm; 1.65 in |
| Threaded Inside Diameter | M36x3.0 |
| Horse Power | 0.53 hp; 0.53 hp old |
| Sub Table Outside Diameter (Decimal Inch) | 6.6900 |
| Sub Table Outside Diameter (mm) | 169.93 |
| Centerline Height (mm) | 130.05; 130.05 mm; 5.12 in |
| Centerline Height (Decimal Inch) | 130.05 mm; 5.12 in; 5.1200 |
| Through Hole Size (mm) | 44.96 |
| Through Hole Size (Decimal Inch) | 1.7700; 1.77 in; 44.96 mm |
| Table Torque (Ft/Lb) | 165.00 |
| Table Torque (kg-m) | 22.21 |
| Pneumatic Brake Torque (Ft/Lb) | 110 |
| Pneumatic Brake Torque (kg-m) | 15.00 |
| Hydraulic Brake Torque (Ft/Lb) | 217 |
| Hydraulic Brake Torque (kg-m) | 30 |
| Resolution (Decimal Inch) | 0.0008 |
| Positioning Accuracy (sec.) | 10.00 |
| Repeatability (sec.) | 2.00 |
| Bore Inside Diameter (mm) | 41.91 |
| Bore Inside Diameter (Decimal Inch) | 1.6500 |
| Gear Ratio | 60:1; 1900-01-02T12:01 |
| Spindle Runout (mm) | 0.15 |
| Spindle Runout (Decimal Inch) | 0.006 in; 0.006000; 0.15 mm |
| Number of T-Slots | 6 |
| Motor Type | AC Servo |
| Voltage | 105 to 240; 105 to 240 V |
| Horsepower (HP) | 0.53 |
| Includes | Locating Keys; UDNC-M1 Controller; Warranty Card; Operators' Manual; Remote Cable; T-Slotted Face Plate; Power Supply |
 | |
| MSC Part # | 72850126 |
| Mfr Part # | DMNC-171-2 |
| Country of OriginCountry of Origin is subject to change | Taiwan |
