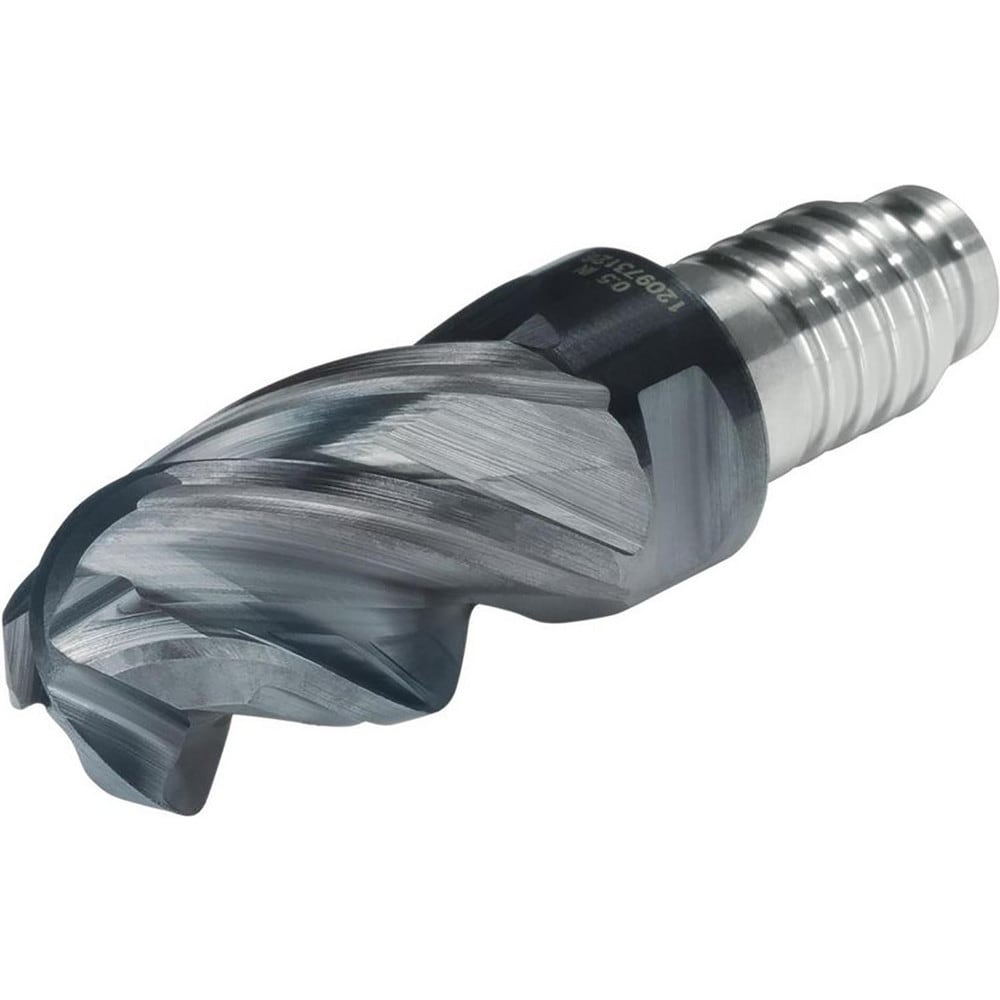

Ball End Mill Heads; Mill Diameter (mm): 15.88; Mill Diameter (Decimal Inch): 0.6250; Length of Cut (mm): 23.8100; Length of Cut (Inch): 15/16; Length Of Cut (Decimal Inch - 4 Decimals): 0.9375; Connection Type: Duo-Lock 16; Overall Length (Decimal Inch):
Item #: 84772813
Brand: Kennametal
Model #: 7136715
Product Specifications
| Mill Diameter (mm) | 15.88 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| Length of Cut (mm) | 23.8100 |
| Length of Cut (Inch) | 15/16 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.9375 |
| Connection Type | Duo-Lock 16 |
| Overall Length (Decimal Inch) | 2.1929 |
| Overall Length (mm) | 55.7000 |
| Material | Carbide |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Flute Type | Variable; Helical Flute |
| Helix Angle | 36 |
| Helix Style | Variable |
| Material Grade | Carbide |
| Maximum Helix Angle | 44 |
| Nose Radius (Decimal Inch) | 0.3125 |
| Series/List | Duo-Lock Harvi I TE |
| Undercutting | No |
| Number Of Flutes | 4 |
| Mill Diameter (Fractional Inch) | 5/8 |
| Finish Coating | AlTiN |
| UNSPSC Code | 27112803 |
| Country of Origin | Israel |
