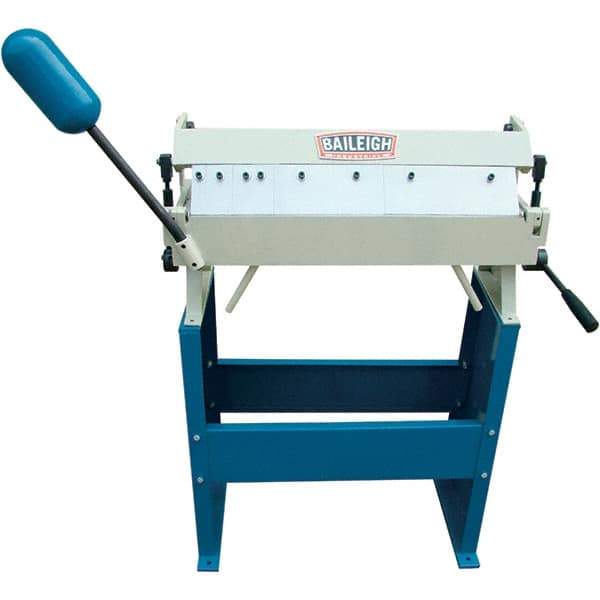

Baileigh - Press Brakes Machine Type: Bench Bending Length (Inch): 24
Item #: 72606296
Brand: Baileigh
Model #: 1000383
Exact Tooling IR#: 04
Product Specifications
Press Brakes; Machine Type: Bench ; Bending Length (Inch): 24 ; Maximum Mild Steel Capacity (mm): 1.52 ; Maximum Mild Steel Capacity (Gauge): 16 ; Maximum Stainless Steel Capacity (mm): 0.91 ; Maximum Stainless Steel Capacity (Gauge): 20
| Machine Type | Bench |
| Bending Length (Inch) | 24 |
| Maximum Mild Steel Capacity (mm) | 1.52 |
| Maximum Mild Steel Capacity (Gauge) | 16 |
| Maximum Stainless Steel Capacity (mm) | 0.91 |
| Maximum Stainless Steel Capacity (Gauge) | 20 |
| Maximum Depth of Box (mm) | 29.97 |
| Maximum Depth of Box (Inch) | 1 |
| Press Brake Style | Box & Pan Brake |
| Finger Width (mm) | 203.2; 25.4; 254; 50.8; 76.2 |
| Finger Width (Inch) | 1; 10; 2; 3; 8 |
| Number of Fingers | 5 |
| Overall Width (mm) | 1105.00 |
| Overall Width (Inch) | 43-1/2 |
| Overall Depth (mm) | 324.00 |
| Overall Depth (Inch) | 12-3/4 |
| Overall Height (mm) | 1156 |
| Overall Height (Inch) | 45-1/2 |
