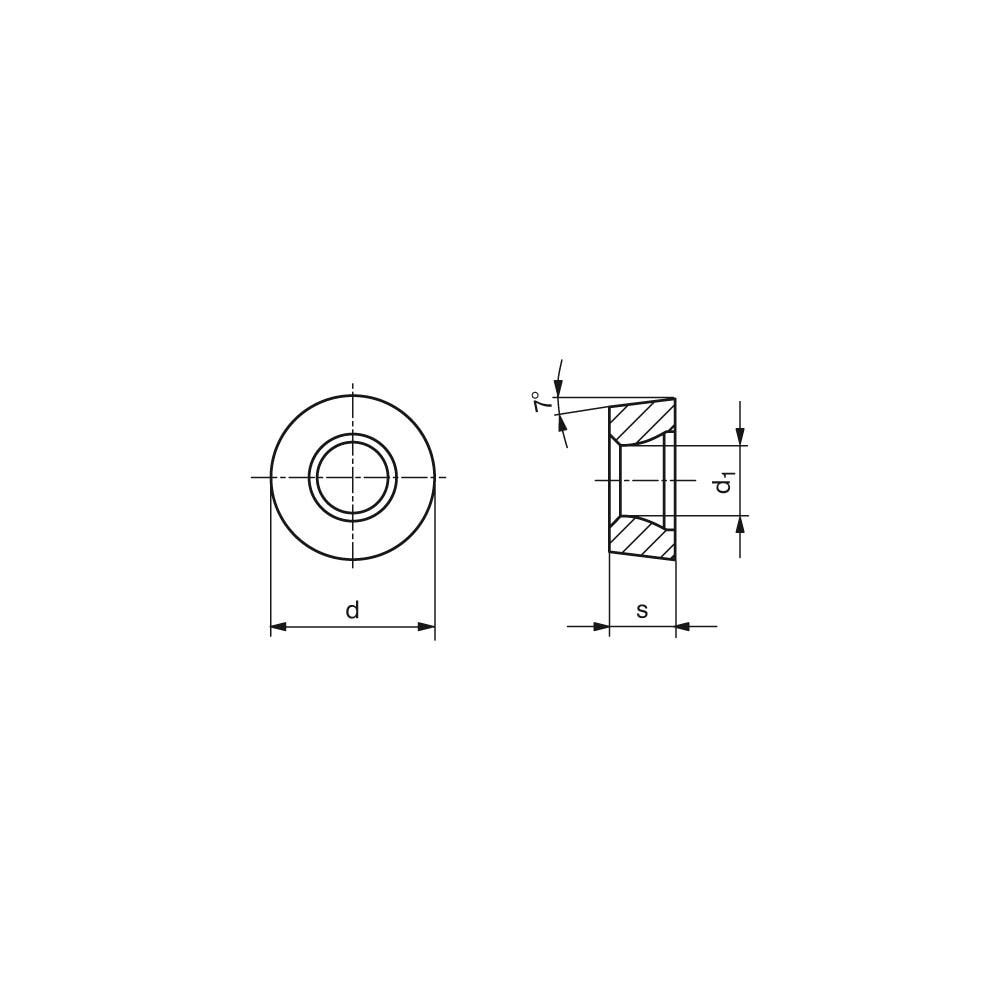

Turning Insert: RCMT43MOSN-SM CTCP135, Carbide
Item #: 26284950
Brand: Ceratizit
Model #: 76264726
Product Specifications
| ANSI Insert Code | RCMT43 |
| ISO Insert Code | RCMT120400 |
| Relief Angle | 7 |
| Insert Style | RCMT |
| Included Angle | 0 |
| Manufacturer Grade | CTCP135 |
| Coating/Finish | TiCN; Al2O3 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Series | RCMT |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Insert Material | Carbide |
| Insert Shape | R - Round |
| Grade Characteristics | Steel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | R |
| Hole Diameter (Decimal Inch) | 0.1929 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | CVD |
| Rake | Positive |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P; M |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Iso Code | RCMT 1204MOSN-SM CTCP135 |
| Chip Breaker | SM |
| ANSI Size Code | 43 |
| ISO Size Code | 120400 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 43 |
